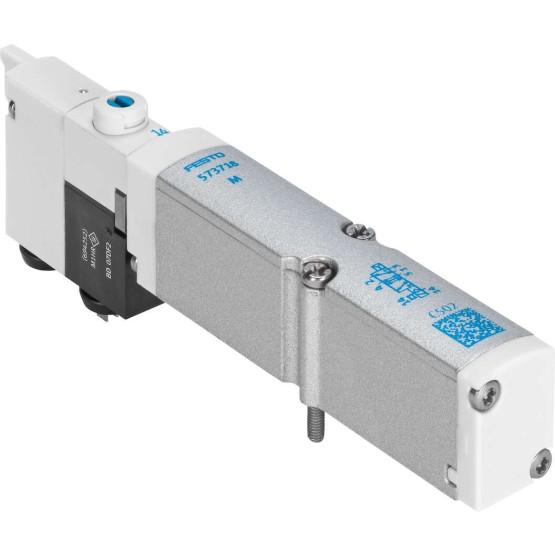

VSNC-FTC-M52-MD-G14-FN

$118.37

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VSNC-FTC-M52-MD-G14-FN

FESTO Order Number:577277

SKU: VSNC-FTC-M52-MD-G14-FN Category: Tag:

Description

Valve function 5/2 or 3/2 adjustable
Actuation type Electrical
Build.width [mm] 32
Normal nominal flow [l/min] 800
Operating pressure [bar] 2.5 to 8
Construction set up Plate seat
Reset mode Mechanical spring
Certified awarding point DNVGL-TAA000011J
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard VDI/VDE 3845 (NAMUR)
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung negative ??berdeckung
Signal condition display With Accessories
b-value 0.15
C-value [l/sbar] 3,96
Normal nominal flow, exhaust return line 4->3 [l/min] 110
Shifting time off [ms] 120
Shifting time on [ms] 16
Power-on time 100 %
Coil characteristic value See solenoid coil, order separately
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -20 to 60
ambient temperature [??C] -20 to 60
Product weight [g] 400
Fastening type With throughway bores
Breathing opening connection Not recorded
Pneumatic connection 1 G1/4
Pneumatic connection 2 NAMUR wiring diagram
Pneumatic connection 3 G1/4
Pneumatic connection 4 NAMUR wiring diagram
Pneumatic connection 5 G1/4
Material information RoHs compliant
Seals material NBR
Housing material Aluminium wrought alloy
Screws material High-alloyed stainless steels
