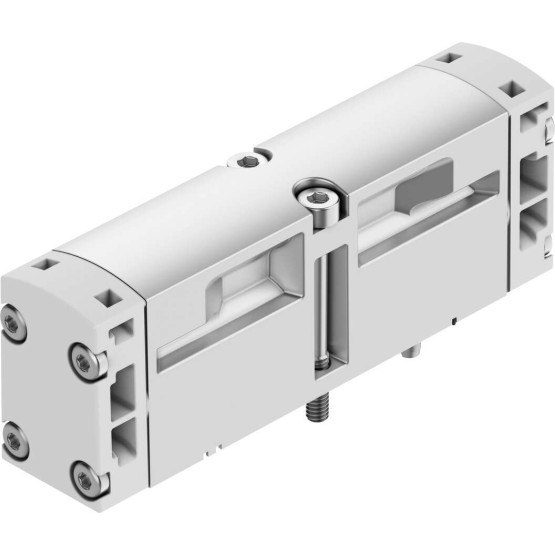

VSPA-B-T32H-A2

VSPA-B-T32H-A2

$86.65

Pneumatic Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VSPA-B-T32H-A2

FESTO Order Number:546723

SKU: VSPA-B-T32H-A2 Category: Tag:

Description

Valve function 2×3/2 open/closed monostable
Actuation type pneumatic
Build.width [mm] 18
Normal nominal flow [l/min] 400
Operating pressure [bar] 2 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Nominal width [mm] 5
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 15407-1VDMA 24563
Control type Direct
Flow direction Not reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 2 to 10
Flow valve [l/min] 600
Flow valve single connection plate [l/min] 450
Flow valve pneumatically linked [l/min] 400
Shifting time off [ms] 15
Shifting time on [ms] 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 – No corrosion stressing
Medium temperature [??C] -10 to 60
Relative humidity 0 – 90 %
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Max. tightening torque Valve fastening [Nm] 0.9 to 1.1
Product weight [g] 80
Control air 12 connection Connection plate Size 18 mm to ISO 15407-1
Control air 14 connection Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 1 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 2 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 3 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 4 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 5 Connection plate Size 18 mm to ISO 15407-1
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Screws material Steelzinc plating
