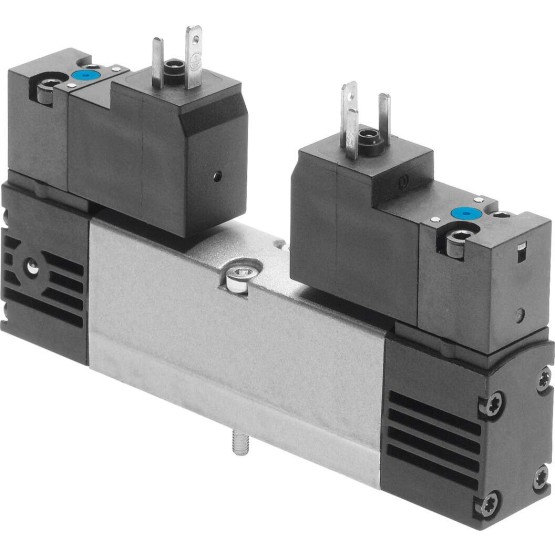

VSVA-B-B52-ZH-A2-3AC1

Description

Valve function 5/2 bistable
Actuation type Electrical
Valve size [mm] 18
Normal nominal flow [l/min] 550
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Protection category IP65NEMA 4
Nominal width [mm] 5
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 15407-1VDMA 24563
Hand assist actuation tentative
Control type pilot operated
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Signal condition display LED
Flow valve [l/min] 750
Flow valve single connection plate [l/min] 550
Flow valve pneumatically linked [l/min] 550
Power-on time 100 %
Coil characteristic value 230 V AC: 50/60 Hz, pull-in power 2.9 VA, holding power 2.1 VA
Permitted voltage oscillations -15 % / +10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Medium temperature [??C] -5 to 50
Relative humidity 0 – 90 %
Sound level [dB(A)] 85
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 50
Max. tightening torque Valve fastening [Nm] 1
Product weight [g] 174
Electrical connection Wiring diagram Form C acc. to EN 175301-803acc. to DIN EN 175301-803with protective earthing conductor
Fastening type on connection plate
Support air control connection 12 Connection plate Size 18 mm to ISO 15407-1
Support air control connection 14 Connection plate Size 18 mm to ISO 15407-1
Exhaust control connection 82/84 RecordedNot recorded to standard
Pneumatic connection 1 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 2 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 3 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 4 Connection plate Size 18 mm to ISO 15407-1
Pneumatic connection 5 Connection plate Size 18 mm to ISO 15407-1
Pre-control interface acc. to ISO 15218
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die casting
Screws material Steelzinc plating
Shifting time um [ms] 15
Control pressure [bar] 3 to 10
CE certificate (see declaration of conformity) to EU low voltage directive
