VSVA-B-M52-AH-A1-5C1

$137.16

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

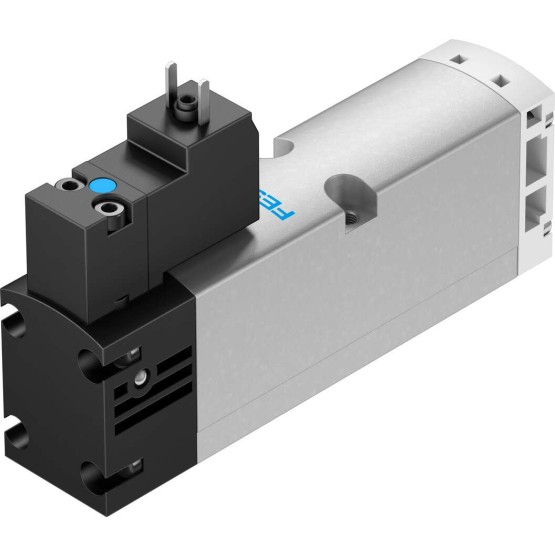

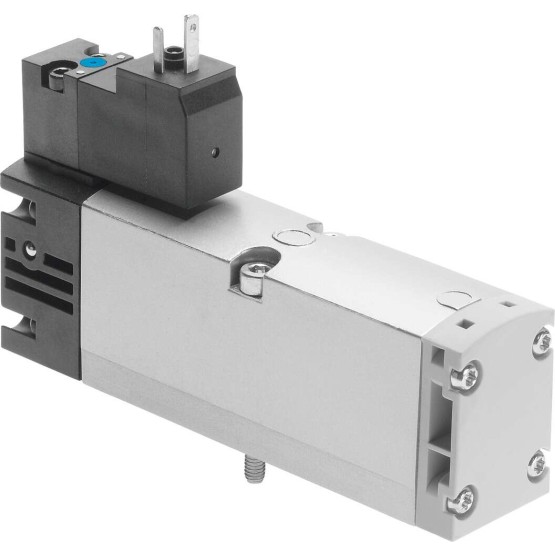

Model:VSVA-B-M52-AH-A1-5C1

FESTO Order Number:547138

SKU: VSVA-B-M52-AH-A1-5C1 Category: Tag:

Description

Valve function 5/2 monostable
Actuation type Electrical
Valve size [mm] 26
Normal nominal flow [l/min] 1.100
Operating pressure [bar] 3 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Protection category IP65NEMA 4
Nominal width [mm] 9
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 15407-1VDMA 24563
Hand assist actuation tentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Signal condition display LED
Flow valve [l/min] 1.400
Flow valve single connection plate [l/min] 1.100
Flow valve pneumatically linked [l/min] 1.100
Shifting time off [ms] 43
Shifting time on [ms] 35
Power-on time 100 %
Coil characteristic value 12 V DC: 1,8 W
Permitted voltage oscillations -15 % / +10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Medium temperature [??C] -5 to 50
Relative humidity 0 – 90 %
Sound level [dB(A)] 85
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 50
Max. tightening torque Valve fastening [Nm] 2
Product weight [g] 180
Electrical connection Wiring diagram Form C acc. to EN 175301-803acc. to DIN EN 175301-803without protective earthing conductor
Fastening type on connection plate
Support air control connection 12 Connection plate Size 26 mm to ISO 15407-1
Support air control connection 14 Connection plate Size 26 mm to ISO 15407-1
Exhaust control connection 82/84 RecordedNot recorded to standard
Pneumatic connection 1 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 2 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 3 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 4 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 5 Connection plate Size 26 mm to ISO 15407-1
Pre-control interface acc. to ISO 15218
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die casting
Screws material Steelzinc plating
