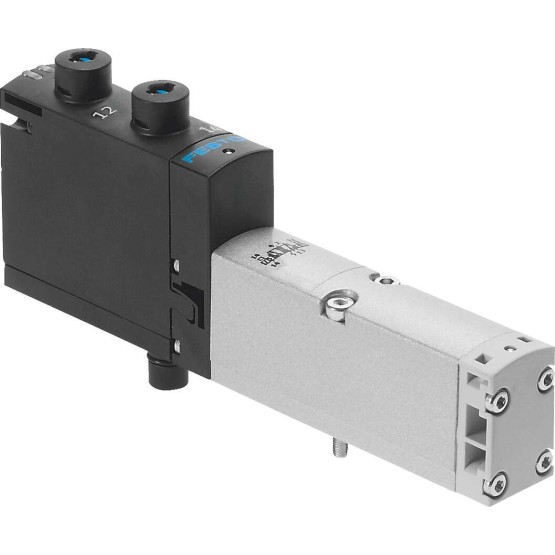

VSVA-B-M52-AZD-A2-1T1L

Description

Valve function 5/2 monostable
Actuation type Electrical
Build.width [mm] 18
Normal nominal flow [l/min] 550
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Permission CSA (OL)c UL us – Recognized (OL)
Protection category IP65NEMA 4
Exhaust function drosselbar??ber Drosselplatte??ber Einzelanschlussplatte
Sealing principle Soft
installation position arbitrary
Hand assist actuation RatchetingCoveredtentative
Control type pilot operated
Control air supply externalInternal
Flow direction arbitrary
??berdeckung positive ??berdeckung
Signal condition display LED
Control pressure [bar] 3 to 10
Flow valve [l/min] 750
Flow valve single connection plate [l/min] 600
Flow valve pneumatically linked flow optimised [l/min] 700
Flow valve pneumatically linked [l/min] 550
Shifting time off [ms] 28
Shifting time on [ms] 22
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.500
Max. negative test impulse for 1 signal [??s] 800
Nominal operating voltage DC [V] 24
Coil characteristic value 24 V DC: 1,6 W
Surge voltage strength [kV] 2,5
Degree of contamination 3
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Relative humidity 0 – 90 %
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 50
Product weight [g] 163
Electrical connection Plug-into ISO 15407-2
Fastening type on connection plate
Support air control connection 12/14 Connection plate Size 18 mm to ISO 15407-2
Exhaust control connection 82/84 Selectively:RecordedNot recorded to standard
Pneumatic connection 1 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 2 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 3 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 4 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 5 Connection plate Size 18 mm to ISO 15407-2
Material information RoHs compliant
Seals material FKMHNBRNBR
Housing material PAAluminium die casting
Screws material Zinc-plated steel
Reset mode Pneumatic spring
