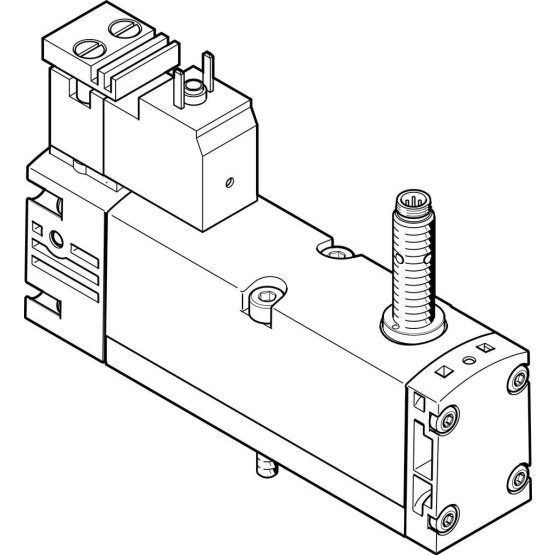

Description
Valve function 5/2 monostable
Actuation type Electrical
Normal nominal flow [l/min] 1.100
Operating pressure [bar] -0.9 to 16
Construction set up Piston pusher
Reset mode Mechanical spring
Permission C-tickc UL us – Recognized (OL)
Protection category IP65NEMA 4
Nominal width [mm] 9
Exhaust function drosselbar??ber Drosselplatte??ber Einzelanschlussplatte
Sealing principle Soft
installation position arbitrary
Complies to standard VDMA 24563ISO 15407-1
Hand assist actuation Covered
Control type pilot operated
Control air supply external
Flow direction arbitrary
??berdeckung positive ??berdeckung
Signal condition display With Accessories
Flow valve [l/min] 1.400
Flow valve single connection plate [l/min] 1.100
Flow valve pneumatically linked [l/min] 1.100
Shifting time off [ms] 41
Shifting time on [ms] 21
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.000
Max. negative test impulse for 1 signal [??s] 800
Coil characteristic value 24 V DC: 1,8 W
Permitted voltage oscillations -15 % / +10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Medium temperature [??C] -5 to 50
Relative humidity 0 – 90 %
Sound level [dB(A)] 85
ambient temperature [??C] -5 to 50
Max. tightening torque Valve fastening [Nm] 1.8 to 2.2
Product weight [g] 332
Electrical connection Wiring diagram Form C acc. to EN 175301-803without protective earthing conductoracc. to EN 175301-803
Fastening type on connection plate
Exhaust control connection 82/84 Not recordedSelectively:Recorded
Pneumatic connection 1 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 2 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 3 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 4 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 5 Connection plate Size 26 mm to ISO 15407-1
Pre-control interface acc. to ISO 15218
Material information RoHs compliant
Seals material FKMNBR
Housing material PAAluminium die casting
Screws material Zinc-plated steel
Control pressure [bar] 3 to 10
CE certificate (see declaration of conformity) to EU EMC directive
Build.width [mm] 26
KC-mark KC-EMV
Certified awarding point UL MH19482
Measurement principle Inductive
Reverse polarity protection sensor for all electrical connections
Switching position query Idle position with sensor
Noise status indicator LED
Valve – sensor switching time on [ms] 60
Valve – sensor switching time off [ms] 11
Nominal operating voltage DC [V] 24
Control output NPN
Operating voltage range DC sensor [V] 10 to 30
Short circuit resistance sensor Cycling
Empty run sensor [mA] <= 10 mA
Max. output current sensor [mA] 200
Max. switching frequency sensor [Hz] 5.000
Residual ripple sensor ?? 10 %
Sensor voltage drop [V] <= 2 V
Sensor connection 2.5 mcable
Support air control connection 12/14 Connection plate Size 26 mm to ISO 15407-1
Switching element function NC contact
