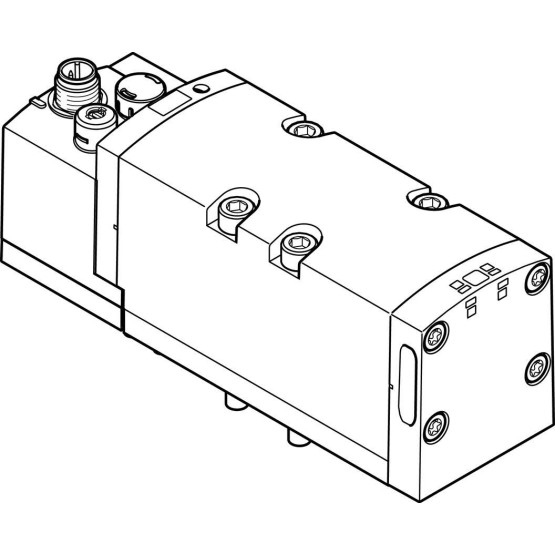

VSVA-B-M52-MZD-A2-1T1L-APX-0.5

Description

Valve function 5/2 monostable
Actuation type Electrical
Build.width [mm] 18
Normal nominal flow [l/min] 550
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Permission C-tickCSA (OL)c UL us – Recognized (OL)
Protection category IP65NEMA 4
Exhaust function drosselbar??ber Drosselplatte??ber Einzelanschlussplatte
Sealing principle Soft
installation position arbitrary
Hand assist actuation RatchetingCoveredtentative
Control type pilot operated
Control air supply externalInternal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Signal condition display LED
Control pressure [bar] 3 to 10
Flow valve [l/min] 750
Flow valve single connection plate [l/min] 600
Flow valve pneumatically linked flow optimised [l/min] 700
Flow valve pneumatically linked [l/min] 550
Shifting time off [ms] 38
Shifting time on [ms] 12
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.500
Max. negative test impulse for 1 signal [??s] 800
Nominal operating voltage DC [V] 24
Coil characteristic value 24 V DC: 1,6 W
Surge voltage strength [kV] 2,5
Degree of contamination 3
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Relative humidity 0 – 90 %
ambient temperature [??C] -5 to 50
Product weight [g] 157
Electrical connection 4 pinPlugto ISO 15407-2
Fastening type on connection plate
Support air control connection 12/14 Connection plate Size 18 mm to ISO 15407-2
Exhaust control connection 82/84 Not recordedSelectively:Recorded
Pneumatic connection 1 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 2 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 3 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 4 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 5 Connection plate Size 18 mm to ISO 15407-2
Material information RoHs compliant
Seals material FKMNBR
Housing material PAAluminium die casting
Screws material Zinc-plated steel
Reset mode Mechanical spring
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU EMC directive
Nominal width [mm] 5
Measurement principle Inductive
Reverse polarity protection sensor for all electrical connections
Switching position query Idle position with sensor
Noise status indicator LED
Valve – sensor switching time on [ms] 32
Valve – sensor switching time off [ms] 9
Control output PNP
Medium temperature [??C] -5 to 50
Sound level [dB(A)] 85
Max. tightening torque Valve fastening [Nm] 0.8 to 1.2
Operating voltage range DC sensor [V] 10 to 30
Short circuit resistance sensor Cycling
Empty run sensor [mA] <= 10 mA Max. output current sensor [mA] 200 Max. switching frequency sensor [Hz] 5.000 Residual ripple sensor ?I 10 % Sensor voltage drop [V] <= 2 V Sensor connection M12x10.5 m4 pincablePlug Switching element function NC contact
