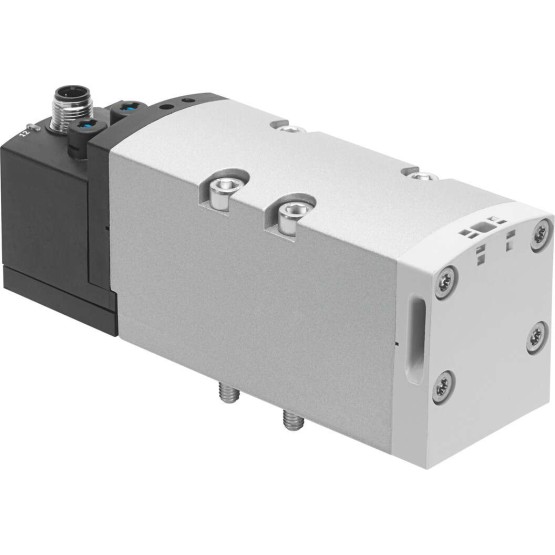

Description
Valve function 5/3 ventilated
Actuation type Electrical
Build.width [mm] 52
Operating pressure [bar] 3 to 10
Construction set up Piston pusher
Permission C-tickc CSA us (OL)c UL us – Recognized (OL)
CE certificate (see declaration of conformity) to EU EMC directive
Protection category IP65NEMA 4
Nominal width [mm] 15
Pitch dimension [mm] 59
Exhaust function drosselbar??ber Drosselplatte??ber Einzelanschlussplatte
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 5599-1
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Signal condition display LED
Flow valve [l/min] 3.600
Flow valve single connection plate [l/min] 2.300
Flow valve pneumatically linked [l/min] 2.700
Shifting time off [ms] 60
Shifting time on [ms] 23
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.000
Max. negative test impulse for 1 signal [??s] 3.500
Nominal tightening current per solenoid 165 mA to 30 ms
Nominal current for current reduction 35 mA after 30 ms
Coil characteristic value 24 V DC: 4,6 W
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Medium temperature [??C] -5 to 50
Relative humidity 0 – 90 %
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 50
Product weight [g] 780
Electrical connection M12x13 pinRound shapeCentral plug
Fastening type on connection plate
Material information RoHs compliant
Seals material FKMHNBRNBR
Housing material PAAluminium die casting
Normal nominal flow [l/min] 2.700
Pneumatic connection 1 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 2 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 3 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 4 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 5 Connection plate Size 2 to ISO 5599-1
Screws material Steelzinc plating
KC-mark KC-EMV
