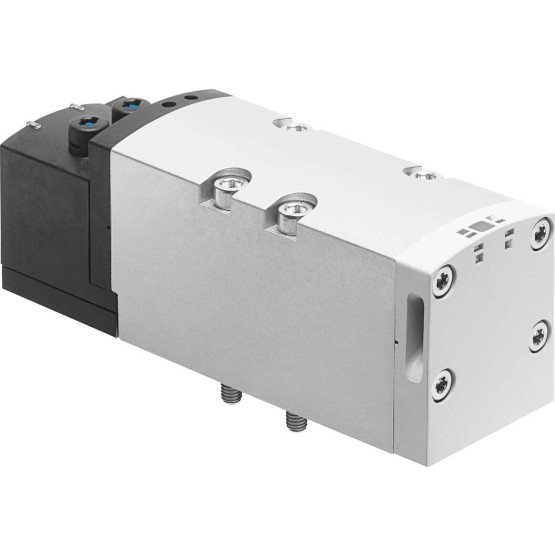

VSVA-B-T32U-AZTR-D2-1T1L

$301.02

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VSVA-B-T32U-AZTR-D2-1T1L

FESTO Order Number:8034963

SKU: VSVA-B-T32U-AZTR-D2-1T1L Category: Tag:

Description

Valve function 2×3/2 open monostable
Actuation type Electrical
Build.width [mm] 52
Normal nominal flow [l/min] 2.400
Operating pressure [bar] 3 to 10
Construction set up Piston pusher
Permission C-tickc CSA us (OL)c UL us – Recognized (OL)
Protection category IP65NEMA 4
Exhaust function drosselbar??ber Drosselplatte??ber Einzelanschlussplatte
Sealing principle Soft
installation position arbitrary
Hand assist actuation With Accessories ratchetingtentative
Control type pilot operated
Control air supply external
Flow direction Not reversible
Signal condition display LED
Control pressure [bar] 3 to 10
Flow valve [l/min] 3.000
Flow valve single connection plate [l/min] 2.600
Flow valve pneumatically linked [l/min] 2.400
Shifting time off [ms] 35
Shifting time on [ms] 20
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.000
Max. negative test impulse for 1 signal [??s] 3.500
Coil characteristic value 24 V DC: 4,6 W
Surge voltage strength [kV] 2,5
Degree of contamination 3
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Relative humidity 0 – 90 %
ambient temperature [??C] -5 to 50
Product weight [g] 740
Electrical connection Plug-into ISO 5599-2
Fastening type on connection plate
Support air control connection 12/14 Connection plate Size 2 to ISO 5599-2
Exhaust control connection 82/84 Selectively:RecordedNot recorded to standard
Pneumatic connection 1 Connection plate Size 2 to ISO 5599-2
Pneumatic connection 2 Connection plate Size 2 to ISO 5599-2
Pneumatic connection 3 Connection plate Size 2 to ISO 5599-2
Pneumatic connection 4 Connection plate Size 2 to ISO 5599-2
Pneumatic connection 5 Connection plate Size 2 to ISO 5599-2
Material information RoHs compliant
Seals material FKMHNBRNBR
Housing material PAAluminium die casting
Screws material Zinc-plated steel
Nominal tightening current per solenoid 165 mA to 30 ms
CE certificate (see declaration of conformity) to EU EMC directive
Medium temperature [??C] -5 to 50
Pitch dimension [mm] 59
Complies to standard ISO 5599-2
Nominal current for current reduction 35 mA after 30 ms
