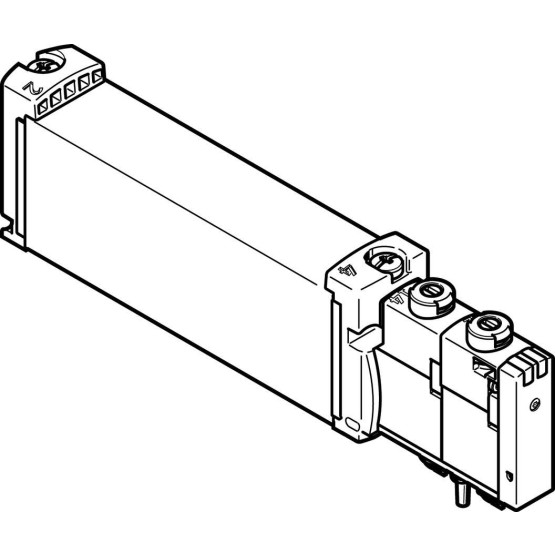

VUVG-B18-M52-RZT-F-1T1L

$107.78

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VUVG-B18-M52-RZT-F-1T1L

FESTO Order Number:8004891

SKU: VUVG-B18-M52-RZT-F-1T1L Category: Tag:

Description

Valve function 5/2 monostable
Actuation type Electrical
Valve size [mm] 18
Normal nominal flow [l/min] 950
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Reset mode Mechanical springPneumatic spring
Permission c CSA us (OL)c UL us – Recognized (OL)
Protection category IP65IP67
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply external
??berdeckung unbestimmte ??berdeckung
Signal condition display LED
Control pressure [bar] 2.5 to 8
Max. switching frequency [Hz] 3
Shifting time off [ms] 30
Shifting time on [ms] 15
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.600
Max. negative test impulse for 1 signal [??s] 3.000
Coil characteristic value 22 V DC: 1 W
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 60
Product weight [g] 138
Electrical connection Via connection plate
Fastening type on terminal strip
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium wrought alloy
Flow direction Reversible
