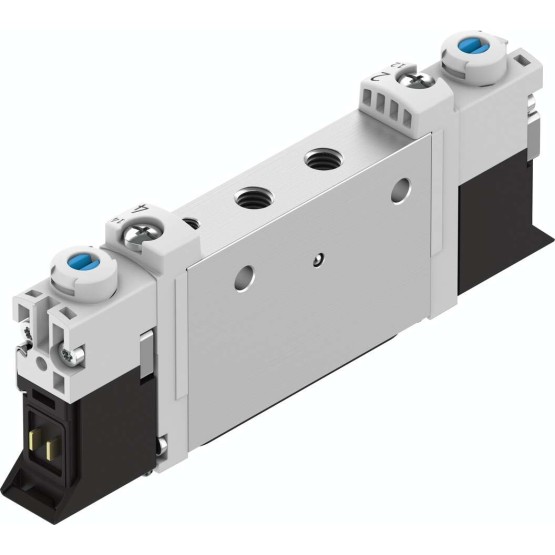

Description
Valve function 5/3 vented
Actuation type Electrical
Valve size [mm] 10
Normal nominal flow [l/min] 210
Operating pressure [bar] 3 to 8
Construction set up Piston pusher
Reset mode Mechanical spring
Permission RCM markc CSA us (OL)c UL us – Recognized (OL)
Protection category IP40IP65With Socket
Nominal width [mm] 3,2
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation RatchetingCoveredtentative
Control type pilot operated
Control air supply Internal
??berdeckung unbestimmte ??berdeckung
Control pressure [bar] 3 to 8
Vacuum capable no
Shifting time off [ms] 30
Shifting time on [ms] 10
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 700
Max. negative test impulse for 1 signal [??s] 900
Coil characteristic value 24 V DC: Low current phase 0.3 W, high current phase 1,0 W24 V DC: 1 W
Permitted voltage oscillations ?? 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Limits ambient and media temperature -5 – 50 ??CWithout holding current reduction
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 60
ambient temperature [??C] -5 to 60
Product weight [g] 55
Electrical connection Via electrical connection plate
Fastening type With throughway boresSelectively:on terminal strip
Pneumatic connection 1 M5
Pneumatic connection 2 M5
Pneumatic connection 3 M5
Pneumatic connection 4 M5
Pneumatic connection 5 M5
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium wrought alloy
Shifting time um [ms] 16
