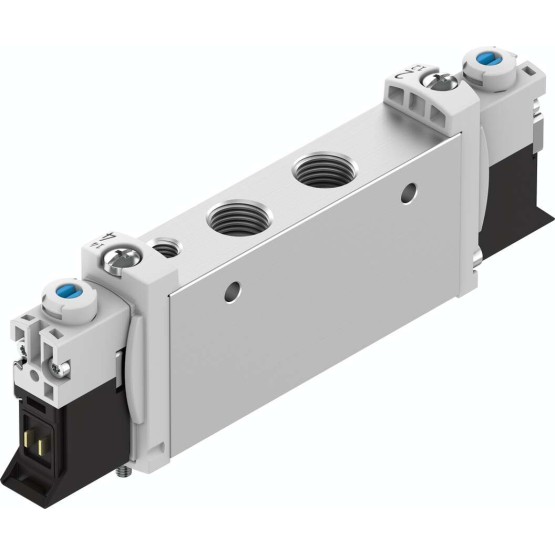

Description
Valve function 2×3/2 closed monostable
Actuation type Electrical
Valve size [mm] 14
Normal nominal flow [l/min] 560
Operating pressure [bar] 1.5 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Permission RCM markc CSA us (OL)c UL us – Recognized (OL)
Protection category IP40IP65With Socket
Nominal width [mm] 4,6
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation RatchetingCoveredtentative
Control type pilot operated
Control air supply external
??berdeckung positive ??berdeckung
Control pressure [bar] 1.5 to 8
Vacuum capable no
Shifting time off [ms] 23
Shifting time on [ms] 8
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 700
Max. negative test impulse for 1 signal [??s] 900
Coil characteristic value 24 V DC: Low current phase 0.3 W, high current phase 1,0 W24 V DC: 1 W
Permitted voltage oscillations ?? 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Limits ambient and media temperature -5 – 50 ??CWithout holding current reduction
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 60
ambient temperature [??C] -5 to 60
Product weight [g] 89
Electrical connection Via electrical connection plate
Fastening type With throughway boresSelectively:on terminal strip
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Pneumatic connection 4 G1/8
Pneumatic connection 5 G1/8
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium wrought alloy
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
Support air control connection 12/14 M5
