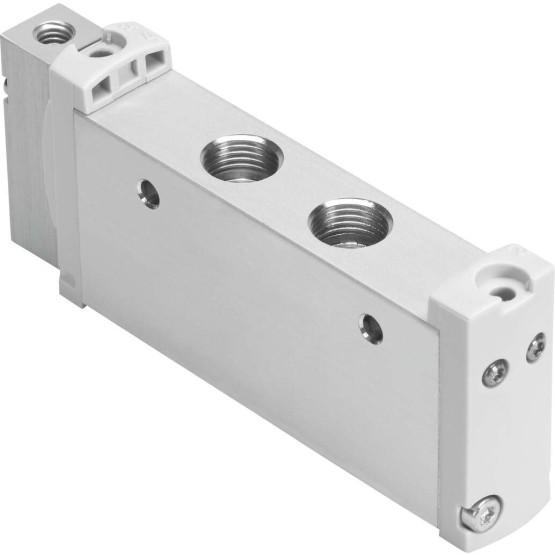

Description
Valve function 5/2 bistable
Actuation type pneumatic
Valve size [mm] 18
Normal nominal flow [l/min] 1.380
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Pitch dimension [mm] 19,0
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation none
Control type Direct
Flow direction Reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 1.5 to 10
Vacuum capable yes
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 50
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 60
Product weight [g] 160
Fastening type on PR stripWith throughway boresSelectively:
Control air 12 connection M5
Control air 14 connection M5
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Pneumatic connection 3 G1/4
Pneumatic connection 4 G1/4
Pneumatic connection 5 G1/4
Material information RoHs compliant
Seals material HNBRNBR
Housing material aluminiumanodized
Shifting time um [ms] 12
