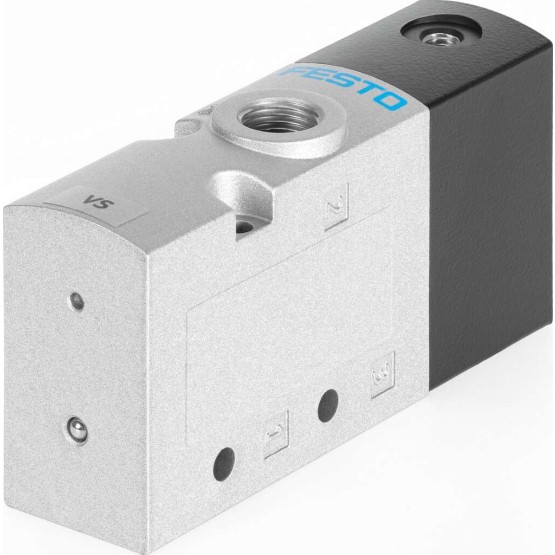

Description
Valve function 3/2 closed monostable
Actuation type pneumatic
Valve size [mm] 31,0
Normal nominal flow [l/min] 2.300
Operating pressure [bar] 2.5 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Permission c UL us – Recognized (OL)
Nominal width [mm] 9,4
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation none
Control type Direct
Control air supply Internal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 2.5 to 10
Shifting time off [ms] 36
Shifting time on [ms] 19
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Product weight [g] 394
Fastening type With throughway boresSelectively:on terminal strip
Breathing opening connection Not recorded
Control air 12 connection G1/8
Pneumatic connection 1 G3/8
Pneumatic connection 2 G3/8
Pneumatic connection 3 G3/8
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die castingpainted
Piston pusher material Aluminium wrought alloy
Screws material Nickel-plated steel
