VZBF-11/2-P1-20-D-2-F0507-V15#

$385.82

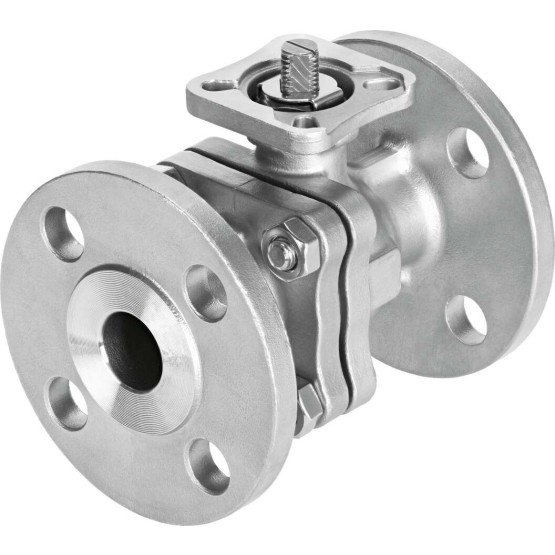

Ball Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VZBF-11/2-P1-20-D-2-F0507-V15#

FESTO Order Number:4810855

SKU: VZBF-11/2-P1-20-D-2-F0507-V15# Category: Tag:

Description

Construction set up 2-way ball valve
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Flange to ANSI B16.5 class 150
Switching position display Carriage direction = flow direction
Flange drilling screen F0507
Inside diameter [mm] 38
Nominal width DN 40
Valve function 2/2
Flow direction Reversible
Nominal pressure fitting 20
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 30
Based on standard ISO 5211ANSI B16.5 class 150
medium Compressed air acc. to ISO8573-1:2010 [-:-:-]Inert gassesNeutral liquidsWaterSteam
Medium temperature [??C] -20 to 200
Flow Kv [m3/h] 61,6
Material information LABS containing materials includedRoHs compliant
Housing material Cast stainless steel
Material number housing 1.4408
Seals material PTFEFPMPCTFEGrafit
Ball material Cast stainless steel
Material number ball 1.4408
Shaft material High-alloyed stainless steels
Material number shaft 1.4401
Product weight [g] 5.630
Permission API607CRN
Corrosion resistant class KBK 4 – particularly severe corrosion stress
CE certificate (see declaration of conformity) to EU pressure vessel directive
