Description

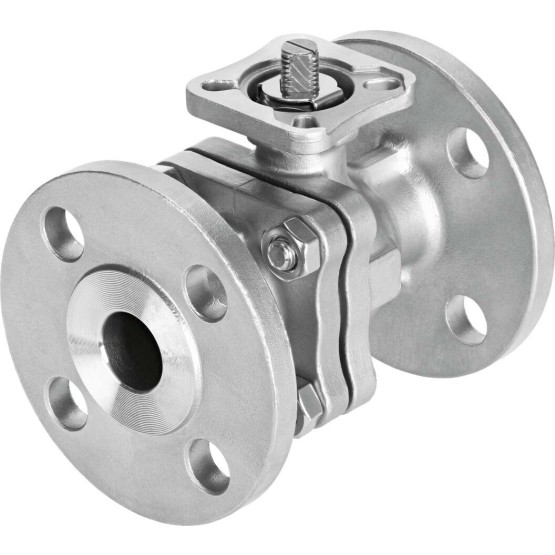

Construction set up 2-way ball valve
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Flange to ANSI B16.5 class 150
Switching position display Carriage direction = flow direction
Flange drilling screen F1012
Inside diameter [mm] 150
Nominal width DN 150
Valve function 2/2
Flow direction Reversible
Nominal pressure fitting 20
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 350
Based on standard ISO 5211ANSI B16.5 class 150
medium Compressed air acc. to ISO8573-1:2010 [-:-:-]Inert gassesNeutral liquidsWaterSteam
Medium temperature [??C] -20 to 200
Flow Kv [m3/h] 1.132,3
Material information LABS containing materials includedRoHs compliant
Housing material Cast stainless steel
Material number housing 1.4408
Seals material FPMPCTFEPTFEGraphite
Ball material High-alloyed stainless steels
Material number ball 1.4401
Shaft material High-alloyed stainless steels
Material number shaft 1.4401
Product weight [g] 50.200
Permission CRN
Corrosion resistant class KBK 4 – particularly severe corrosion stress
CE certificate (see declaration of conformity) to EU pressure vessel directive
