VZBM-1/4-RP-40-D-2-F03-B2B3

VZBM-1/4-RP-40-D-2-F03-B2B3

$26.31

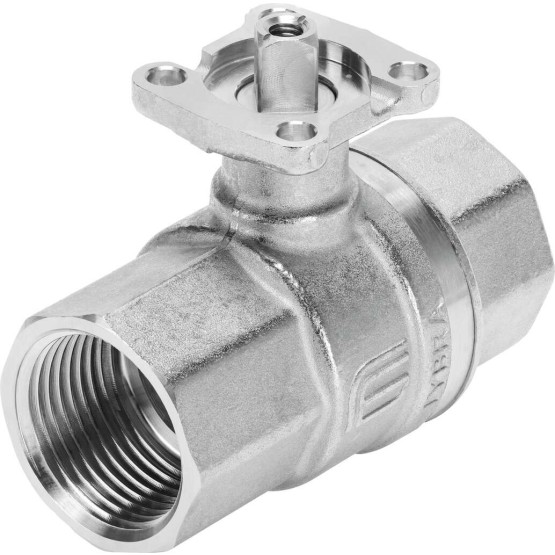

Ball Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VZBM-1/4-RP-40-D-2-F03-B2B3

FESTO Order Number:4405646

SKU: VZBM-1/4-RP-40-D-2-F03-B2B3 Category: Tag:

Description

Construction set up 2-way ball valve
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Rp1/4
Switching position display Carriage direction = flow direction
Flange drilling screen F03
Inside diameter [mm] 10,0
Nominal width DN 8
Valve function 2/2
Flow direction Reversible
Nominal pressure fitting 40
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 3,2
Based on standard EN 10226-1ISO 5211
medium Compressed air to ISO8573-1:2010 [-:-:-]Inert gasesNeutral liquidsWater – no steam
Medium temperature [??C] -20 to 130
Flow Kv [m3/h] 5,9
Material information LABS containing materials includedRoHs compliant
Housing material brassnickel-plated
Material number housing CW617N
Seals material HNBRPTFE
Ball material brassChrome plated
Material number ball CW614N
Shaft material Brass
Material number shaft CW614N
Product weight [g] 412
CE certificate (see declaration of conformity) to EU pressure vessel directive
Corrosion resistant class KBK 1 – low corrosion stress
