VZQA-C-M22U-25-S5S5-V4V4E-4

$821.11

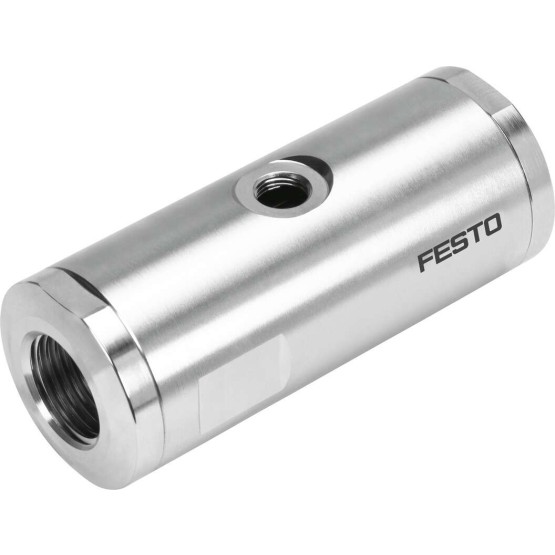

Pinch Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VZQA-C-M22U-25-S5S5-V4V4E-4

FESTO Order Number:3968924

SKU: VZQA-C-M22U-25-S5S5-V4V4E-4 Category: Tag:

Description

Construction set up Pinch valve pneumatically actuated
Actuation type pneumatic
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Clamp acc. to DIN 32676 row A
Nominal width DN 25
Valve function 2/2 open monostable
Flow direction Reversible
Medium pressure [bar] 0 to 4
Operating pressure [bar] 1 to 6.5
Nominal pressure fitting 10
Differential pressure [bar] 2,5
Burst pressure [bar] 16
Overload pressure [bar] 7,8
Reset mode Return impact elasticity
Control type Remote controlled
Support air control connection 12 G1/8
control medium Compressed air to ISO 8573-1:2010 [7:4:1]
medium WaterCompressed air to ISO 8573-1:2010 [-:-:1]
Max. viscosity [mm2/s] 4.000
Medium temperature [??C] -5 to 100
ambient temperature [??C] -5 to 60
Bearing temperature [??C] 6 to 8
Flow Kv [m3/h] 18,0
Shifting time on [ms] 250
Shifting time off [ms] 250
Material information LABS containing materials includedRoHs compliant
Housing material High-alloyed stainless steels
Material number housing 1.4435
Housing cover material High-alloyed stainless steels
Material number housing cover 1.4435
Seals material FPM
Blocking element material EPDM
Product weight [g] 1.474,0
Food compatibility See expanded material information
Clamps material PA6
