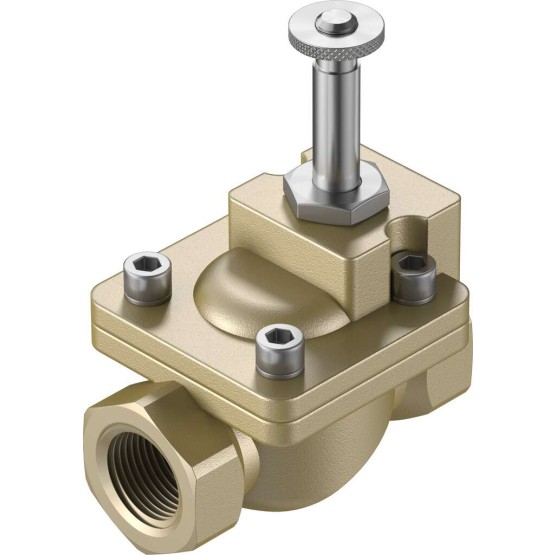

VZWM-L-M22C-G112-F5

VZWM-L-M22C-G112-F5

$450.83

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VZWM-L-M22C-G112-F5

FESTO Order Number:546152

SKU: VZWM-L-M22C-G112-F5 Category: Tag:

Description

Construction set up Membranventilservogesteuert
Actuation type Electrical
Sealing principle Soft
installation position Preferentially standing
Fastening type pipe installation
Fitting connection G1 1/2
Electrical connection Solenoid type MH … , coil can be ordered as accessory
Nominal width [mm] 40,0
Valve function 2/2 closed monostable
Flow direction Not reversible
medium Compressed air to ISO 8573-1:2010 [7:4:4]Inert gasesNeutral liquidsWater
Operating pressure fitting liquid media [bar] 0.7 to 6
Operating pressure fitting gas media [bar] 0.7 to 10
pressure difference [bar] 0,7
Control type pilot operated
Max. viscosity [mm2/s] 22
Medium temperature [??C] -10 to 60
Medium temperature liquid media [??C] 5 to 50
ambient temperature [??C] -10 to 60
Flow Kv [m3/h] 27,4
Normal nominal flow [l/min] 26.400
Shifting time on [ms] 26
Shifting time on liquid media [ms] 1.400
Shifting time off [ms] 20
Shifting time from liquid media [ms] 2.000
b-value 0.67
C-value [l/sbar] 82,0
Material information LABS containing materials includedRoHs compliant
Housing material Brass
Material number housing 2.0402
Seals material NBR
Anchor pipe material High-alloyed steel
Product weight [g] 2.570
Corrosion resistant class KBK 1 – low corrosion stress
Max. tightening torque Cover screw [Nm] 30
Max. tightening torque connection thread [Nm] 540
Max. tightening torque Coil fastening [Nm] 2,0
CE certificate (see declaration of conformity) to EU pressure vessel directive
