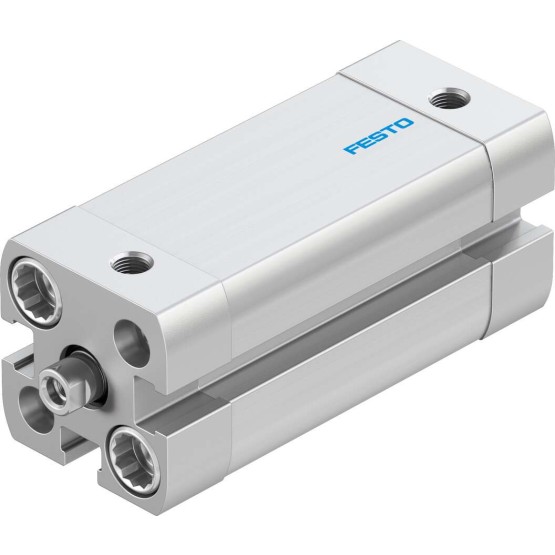

FESTO ADN-12-25-I-P-A Compact Cylinder — 25mm Stroke, 12mm Bore | Part #536215

Name: FESTO ADN-12-25-I-P-A Compact Cylinder — 25mm Stroke, 12mm Bore | Part #536215
Brand: FESTO
SKU: ADN-12-25-I-P-A
Price: 63.39 USD
Availability: InStock

$63.39

The FESTO ADN-12-25-I-P-A (Part #536215) is a Compact Cylinder from the ADN series, designed for double-acting operation and built to ISO 21287 standards. Featuring 12mm bore and 25mm stroke. Key highlights: Excellent running performance with minimal friction for extended service life; Integrated magnetic piston enables non-contact position sensing via proximity switches. Constructed with Wrought aluminum alloy, smooth-anodized body and TPE-U (PUR) seals (CRC 2 corrosion resistance).

SKU: ADN-12-25-I-P-A Category: FESTO Tag: FESTO

Description
Reviews (0)

Description

Product Overview

The FESTO ADN-12-25-I-P-A (Part #536215) is a Compact Cylinder within the ADN series. Designed for double-acting operation, this product is fully compliant with ISO 21287 standards. Manufactured by FESTO — a global leader in automation technology — this component delivers the precision, reliability, and long service life that industrial applications demand.

Key Features

Ultra-compact design: up to 50% less installation space compared to ISO 15552 standard cylinders
Triple-slot barrel with three sides for flexible sensor mounting and diverse attachment options

Technical Specifications

Parameter	Value
Part Number	536215
Model	ADN-12-25-I-P-A
Series	ADN
Product Type	Compact Cylinder
Bore Diameter	12 mm
Stroke Length	25 mm
Operating Mode	double-acting
Standard	ISO 21287
Body Material	Wrought aluminum alloy, smooth-anodized
Rod Material	High-alloy steel
Seal Material	TPE-U (PUR)
Corrosion Resistance	CRC 2
Brand	FESTO

Applications

This component is widely used in automated assembly lines, electronics manufacturing equipment, packaging machinery and similar industrial automation environments.

Quality & Compliance

This is a genuine FESTO product, manufactured to FESTO’s global quality standards. All FESTO components undergo rigorous quality testing to ensure reliable performance across diverse industrial operating conditions. This product is manufactured in accordance with ISO 21287 standards.
