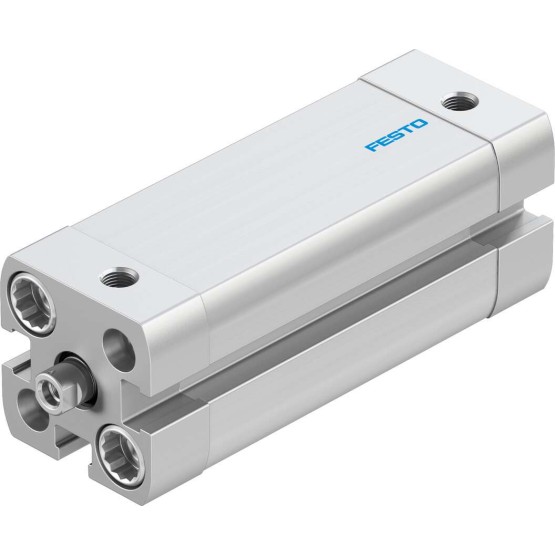

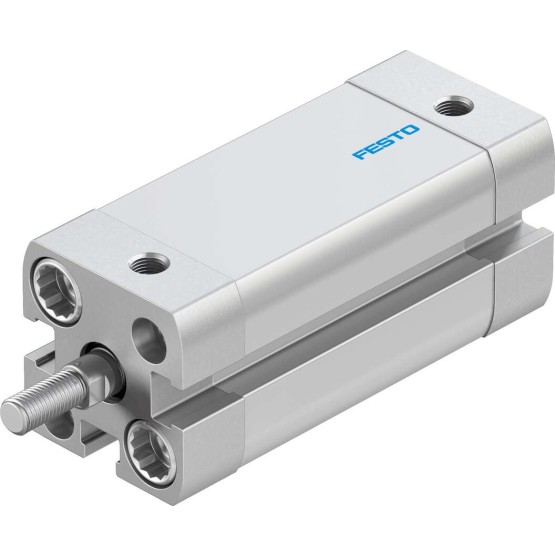

FESTO ADN-12-30-I-P-A Compact Cylinder — 30mm Stroke, 12mm Bore | Part #536216

Name: FESTO ADN-12-30-I-P-A Compact Cylinder — 30mm Stroke, 12mm Bore | Part #536216
Brand: FESTO
SKU: ADN-12-30-I-P-A
Price: 63.88 USD
Availability: InStock

$63.88

Engineered for industrial automation, the FESTO ADN-12-30-I-P-A Compact Cylinder (Order #536216) provides double-acting functionality meeting ISO 21287. Featuring 12mm bore and 30mm stroke. Key highlights: Ultra-compact design: up to 50% less installation space compared to ISO 15552 standard cylinders; Triple-slot barrel with three sides for flexible sensor mounting and diverse attachment options. Constructed with Wrought aluminum alloy, smooth-anodized body and TPE-U (PUR) seals (CRC 2 corrosion resistance).

SKU: ADN-12-30-I-P-A Category: FESTO Tag: FESTO

Description
Reviews (0)

Description

Product Overview

Meeting ISO 21287, the FESTO ADN-12-30-I-P-A Compact Cylinder (Order #536216) represents FESTO’s commitment to industrial automation excellence. Configured for double-acting operation, this ADN series component is engineered to perform reliably across a wide range of industrial applications. Its robust design and quality materials ensure consistent operation and extended service intervals.

Key Features

Ultra-compact design: up to 50% less installation space compared to ISO 15552 standard cylinders
Integrated magnetic piston enables non-contact position sensing via proximity switches

Technical Specifications

Parameter	Value
Part Number	536216
Model	ADN-12-30-I-P-A
Series	ADN
Product Type	Compact Cylinder
Bore Diameter	12 mm
Stroke Length	30 mm
Operating Mode	double-acting
Standard	ISO 21287
Body Material	Wrought aluminum alloy, smooth-anodized
Rod Material	High-alloy steel
Seal Material	TPE-U (PUR)
Corrosion Resistance	CRC 2
Brand	FESTO

Applications

Typical deployment scenarios cover automated assembly lines, electronics manufacturing equipment, packaging machinery and similar industrial automation environments.

Quality & Compliance

This is a genuine FESTO product, manufactured to FESTO’s global quality standards. All FESTO components undergo rigorous quality testing to ensure reliable performance across diverse industrial operating conditions. This product is manufactured in accordance with ISO 21287 standards.
