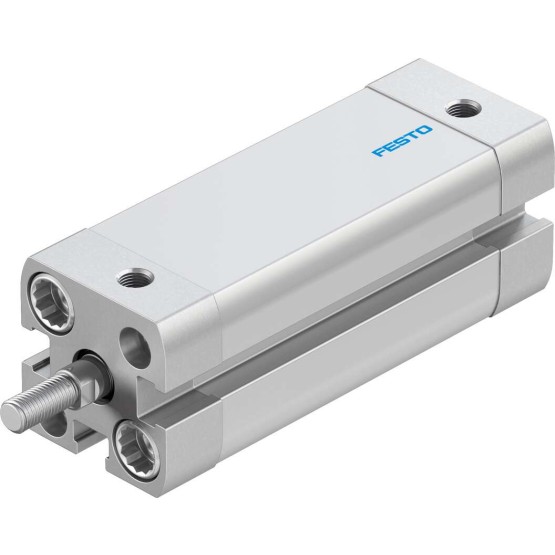

FESTO ADN-12-40-I-P-A Compact Cylinder — 12mm Bore, 40mm Stroke | Part #536217

Name: FESTO ADN-12-40-I-P-A Compact Cylinder — 12mm Bore, 40mm Stroke | Part #536217
Brand: FESTO
SKU: ADN-12-40-I-P-A
Price: 64.87 USD
Availability: InStock

$64.87

Part of the ADN product family, the FESTO ADN-12-40-I-P-A (536217) delivers reliable double-acting performance in full compliance with ISO 21287. With 40mm stroke, 12mm bore. Key highlights: Triple-slot barrel with three sides for flexible sensor mounting and diverse attachment options; Integrated magnetic piston enables non-contact position sensing via proximity switches; Ultra-compact design: up to 50% less installation space compared to ISO 15552 standard cylinders. Sealed with TPE-U (PUR), housed in a Wrought aluminum alloy, smooth-anodized body (CRC 2 corrosion resistance).

SKU: ADN-12-40-I-P-A Category: FESTO Tag: FESTO

Description
Reviews (0)

Description

Product Overview

As a member of FESTO’s ADN family, the ADN-12-40-I-P-A (536217) compact cylinder combines proven engineering with practical performance. It operates in double-acting mode and meets ISO 21287 requirements. FESTO components are known for their quality and durability — this model carries forward that tradition with precision manufacturing and rigorous testing.

Key Features

Excellent running performance with minimal friction for extended service life
Self-adjusting elastic cushioning rings at both ends absorb residual energy — no manual tuning required
Integrated magnetic piston enables non-contact position sensing via proximity switches

Technical Specifications

Parameter	Value
Part Number	536217
Model	ADN-12-40-I-P-A
Series	ADN
Product Type	Compact Cylinder
Bore Diameter	12 mm
Stroke Length	40 mm
Operating Mode	double-acting
Standard	ISO 21287
Body Material	Wrought aluminum alloy, smooth-anodized
Rod Material	High-alloy steel
Seal Material	TPE-U (PUR)
Corrosion Resistance	CRC 2
Brand	FESTO

Applications

Primary application areas include electronics manufacturing equipment, packaging machinery, clamping and fixturing systems and similar industrial automation environments.

Quality & Compliance

This is a genuine FESTO product, manufactured to FESTO’s global quality standards. All FESTO components undergo rigorous quality testing to ensure reliable performance across diverse industrial operating conditions. This product is manufactured in accordance with ISO 21287 standards.
