Product Overview

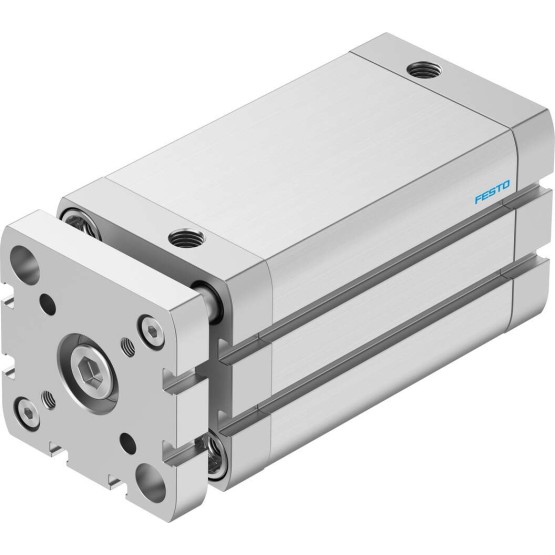

Meeting ISO 21287, the FESTO ADNGF-63-10-PPS-A Guided Compact Cylinder (Order #574049) represents FESTO’s commitment to industrial automation excellence. Configured for double-acting operation, this ADNGF series component is engineered to perform reliably across a wide range of industrial applications. Its robust design and quality materials ensure consistent operation and extended service intervals.
Key Features
- Plain-bearing guide delivers significantly higher load capacity for pick-and-place tasks
- Built-in magnetic piston supports non-contact position sensing via proximity switches
- Integrated guide rods and yoke plate provide excellent anti-twist protection and side load resistance
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 574049 |
| Model | ADNGF-63-10-PPS-A |
| Series | ADNGF |
| Product Type | Guided Compact Cylinder |
| Bore Diameter | 63 mm |
| Stroke Length | 10 mm |
| Operating Mode | double-acting |
| Standard | ISO 21287 |
| Body Material | Wrought aluminum alloy, smooth-anodized |
| Rod Material | High-alloy steel |
| Seal Material | TPE-U (PUR) |
| Corrosion Resistance | CRC 2 |
| Brand | FESTO |
Applications
Typical deployment scenarios cover positioning systems, assembly equipment, welding fixtures and similar industrial automation environments.
Quality & Compliance
This is a genuine FESTO product, manufactured to FESTO’s global quality standards. All FESTO components undergo rigorous quality testing to ensure reliable performance across diverse industrial operating conditions. This product is manufactured in accordance with ISO 21287 standards.
