Festo DADB-S1-20-S151-200: Superior Protection for Bellows Components
2024-07-09In pneumatic systems, bellows components are crucial for protecting piston rods, seals, and bearings from the impact of various media. Festo’s DADB series bellows components offer reliable protection for pneumatic systems with their excellent corrosion resistance and extensive media tolerance.

Product Overview

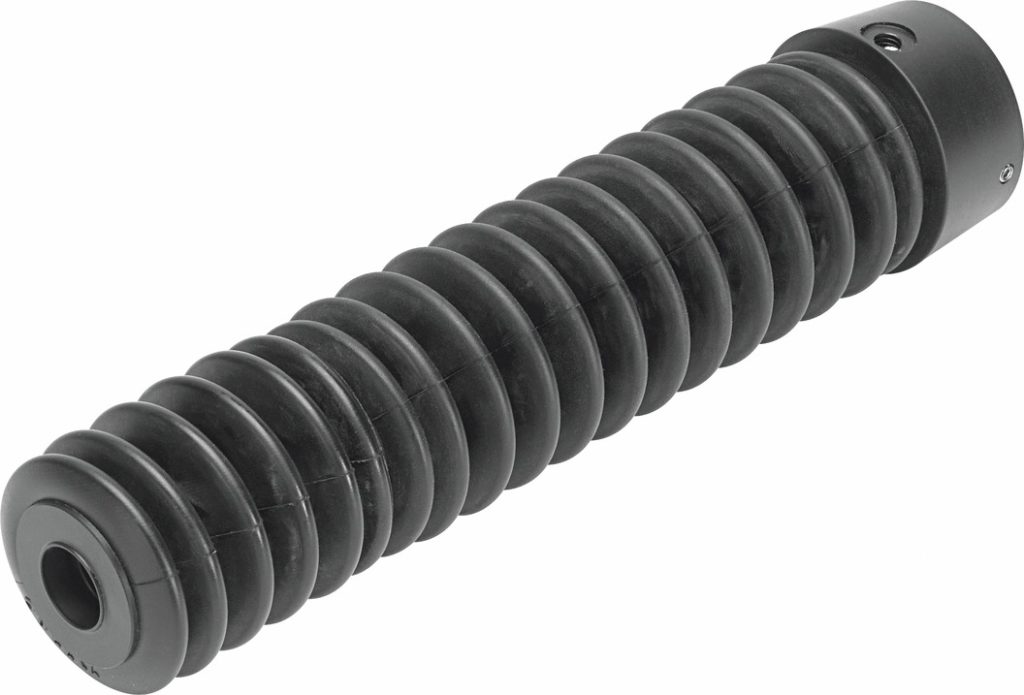

Model: DADB-S1-20-S151-200
Manufacturer: Festo
Series: DADB
The DADB-S1-20-S151-200 bellows component is designed to extend the service life of pneumatic systems, ensuring stability and reliability in various working environments through its high corrosion resistance.
Technical Highlights
- High Corrosion Resistance: Achieves a CRC level of 3, providing superior corrosion resistance.
- Extensive Media Tolerance: Capable of tolerating a variety of media such as dust, chips, oil, grease, and gasoline.
- Temperature Range Adaptability: Suitable for working environments ranging from -10°C to 80°C.
- RoHS Compliant Materials: Ensuring environmental protection and user safety.
- Various Installation Options: Installation is possible through threaded pins or internal threads, offering flexibility.
Technical Specifications
- Outer Diameter: 29 mm
- Specification: 20
- Stroke Range: 151 mm to 200 mm
- Piston Rod Extension: 60 mm
- Design: Circular
- Installation Position: Optional
- Bellows Material: NBR
- Connector Material: Reinforced polyamide
- Seal Material: NBR
- Threaded Pin Material: High-alloy stainless steel
Application Areas
The DADB-S1-20-S151-200 bellows component is suitable for the following fields:
- Pneumatic Systems: Protecting piston rods, seals, and bearings from various media impacts.
- Industrial Automation: Providing stable pneumatic performance in automated equipment.
- Special Environments: Maintaining equipment performance under extreme temperature or media conditions.
Installation and Maintenance
- Easy Installation: Supports installation through threaded pins or internal threads for quick integration.
- Pneumatic Interface: M5, ensuring compatibility with existing systems.
The Festo DADB-S1-20-S151-200 bellows component, with its high corrosion resistance, extensive media tolerance, and flexible installation options, has become an indispensable protective component in pneumatic systems. Choosing Festo means choosing quality and reliability.
