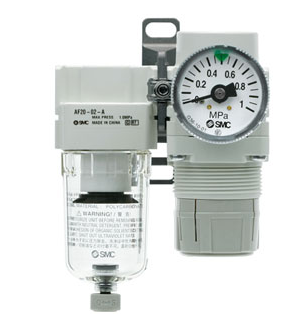

SMC AC20B-02-2-A Air Combination Unit: Air Filter + Regulator

The SMC AC20B-02-2-A series air combination unit is designed to meet industrial air handling needs, combining efficient filtration and pressure regulation to enhance system performance and operational convenience. Here are its detailed features and benefits:

1. Improved Operability

The integrated design of the filter element and cup facilitates easy handling during filter replacement, simplifying maintenance tasks.

2. Energy-saving Regulator

The regulator in this unit offers up to a 50% improvement in pressure drop reduction, effectively saving energy and boosting the efficiency of air systems.

3. Reduced Maintenance Space

Significant reduction (up to 46%) in required maintenance space, saving installation area and lowering maintenance costs.

4. Enhanced Visual Confirmation and Safety

A transparent cup cover enhances operational safety and provides clear visibility of the oil mist separator’s operation status.

5. Technical Specifications and Configuration

• Main Body Size: 20 (unit size)
• Thread Type: Metric thread (M5)/Rc
• Port Size: 02 (1/4)
• Option a: No automatic drain
• Option b: No pressure gauge
• Accessories: Various partition options available, including Y200-A, Y300-A, etc., and partition with bracket options like Y200T-A, Y300T-A, etc.
• Standard a: Pressure range of 0.05 to 0.7 MPa, with a metal cup
• Standard b: With drain valve, overflow type, flow direction: left to right, product label and pressure gauge units in MPa

6. Application Environment

• Series: AC
• Fluid Used: Air
• Fluid Temperature: -5 to 60 ℃
• Pressure Resistance: 1.5 MPa
• Maximum Operating Pressure: 1 MPa
• Filtration Accuracy: 5 μm
• Structure: Overflow type

The SMC AC20B-02-2-A series air combination unit offers an optimized design and multifunctional performance, providing efficient and reliable air handling solutions for industrial environments. Its user-friendly operation and advanced filtration and pressure regulation technologies make it an ideal choice for various industrial applications, ensuring stable operation of air systems in manufacturing facilities, assembly lines, and laboratory settings.
