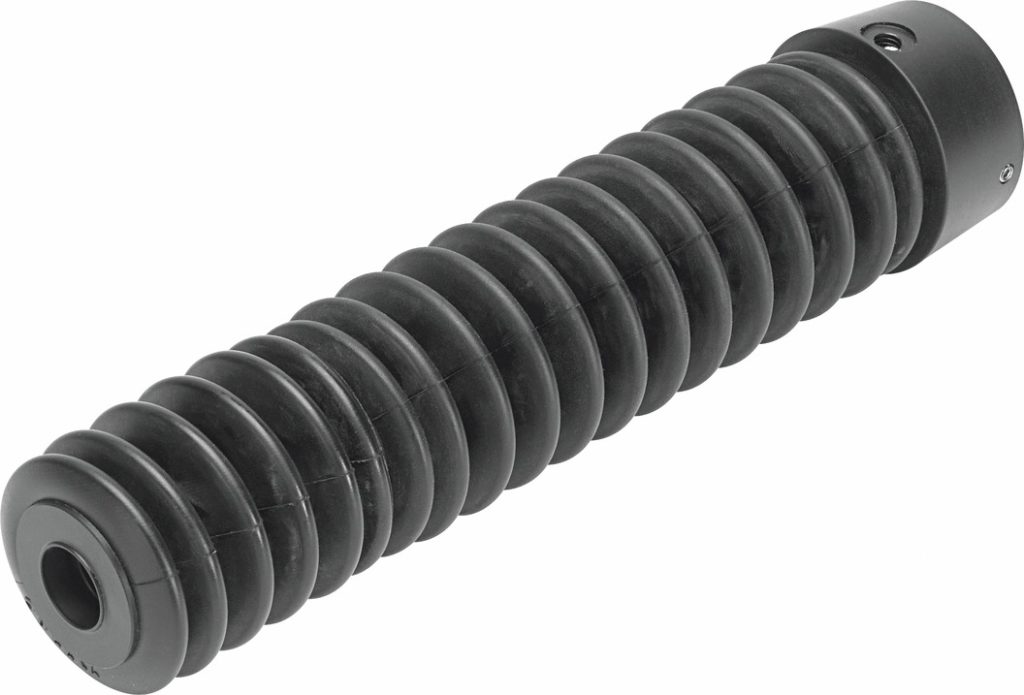

Introduction to FESTO Bellows Assembly DADB-V6-63-S351-375

The FESTO DADB-V6-63-S351-375 bellows assembly is a specialized component designed for precision in industrial applications, offering robust features and reliable performance. Here’s a detailed overview of its specifications and characteristics:

Specifications:

• Outer Diameter: 57 mm
• Specification: 63
• Stroke Range: 351 mm to 375 mm
• Piston Rod Extension: 105 mm
• Design: Circular

Installation Options:

• Mounting Position: Optional

Structural Features:

• Bellows Assembly: Incorporates a corrugated tube component
• Tube-Type Exhaust: Includes integrated tubing for efficient exhaust

Corrosion Resistance:

• CRC Level: High corrosion resistance (Level 3)
• PWIS Compliance: Meets VDMA24364-B2-L standard for paint wetting impairment substances

Media Compatibility:

• Media Tolerance: Suitable for environments with dust, chips, oil, grease, gasoline

Protection Rating:

• IP Rating: IP54

Environmental Conditions:

• Operating Temperature: -10 °C to 80 °C

Additional Details:

• Product Weight: 165 g
• Mounting Method: Embedded installation via threaded pin
• Pneumatic Interface: G1/4
• Material Compliance: RoHS compliant
• Connection Component Material: Reinforced polyamide
• Sealing Material: NBR (Nitrile Butadiene Rubber)
• Bellows Material: NBR
• Threaded Pin Material: High-alloy stainless steel

The FESTO DADB-V6-63-S351-375 bellows assembly is engineered to deliver precision performance in diverse industrial settings. Its robust construction, high corrosion resistance, and compatibility with various media make it suitable for demanding applications. The bellows design ensures reliable operation and longevity, while the integrated features like tube-type exhaust enhance functionality and efficiency.

For more information or inquiries about this product, please contact our customer service team. We are committed to providing comprehensive technical support and solutions tailored to your industrial needs.
