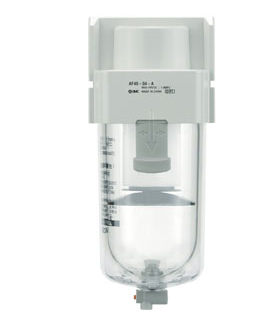

SMC AF30-F03D-8-A Air Filter Product Introduction

The SMC AF30-F03D-8-A air filter is a high-performance filtering component designed for a wide range of industrial applications. Here is a detailed overview of its specifications and features:

Key Features:

• Improved Operational Efficiency: Easy filter replacement due to integrated filter element and cup design, allowing for convenient handling.
• Reduced Maintenance Space: Integrated design minimizes maintenance space, enhancing equipment efficiency to the maximum extent.
• Enhanced Visual Confirmation and Safety: Equipped with a transparent cup protective cover for clear observation of filter status and additional safety protection.

Product Specifications:

• Body Size: 30 (combination component size)
• Thread Type: F/G (metric thread)
• Port Size: 03 (3/8 inch)
• Option a: – (no optional installation)
• Option b: D (automatic float drain N.O. type, discharges condensate water when not pressurized)
• Standard a: 8 (with liquid level gauge metal cup)
• Standard b: – (flow direction: left to right, with drain valve, unit indication on tag and cup: MPa)
• Customization Specification: Standard

Technical Parameters:

• Series: AF
• Check Valve Function: No check valve function
• Fluid: Air
• Fluid Temperature: -5 to 60 ℃
• Pressure Resistance Test Pressure: 1.5 MPa
• Maximum Operating Pressure: 1 MPa
• Filtration Accuracy: 5 μm
• Condensate Storage Capacity: 25 cm³
• Cup Protective Cover: None

The SMC AF30-F03D-8-A air filter, with its superior design and performance features, is suitable for various industrial environments requiring air filtration. Whether used in air compressors, pneumatic equipment, or automated production lines, it effectively improves air quality and protects critical equipment from particles and contaminants. Its user-friendly operation and maintenance design make it an ideal choice for industrial applications.
