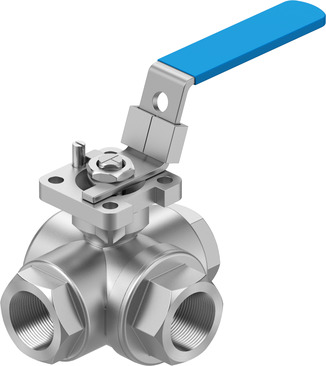

FESTO VZBE-3/4-T-63-F-3T-F04-M-V15V15 Ball Valve Overview

The FESTO VZBE-3/4-T-63-F-3T-F04-M-V15V15 is a high-performance ball valve designed for various industrial applications. Here is a detailed introduction to this product:

Key Features and Specifications:

• Structure Features: 3-way ball valve with a T-shaped bore design, suitable for diverse fluid control needs.
• Actuation: Mechanically driven, operates manually for valve opening and closing.
• Sealing Principle: Utilizes soft sealing technology to ensure reliable valve sealing.
• Installation Position: Optional, adaptable to different installation environments and requirements.
• Installation Method: Pipe installation, suitable for industrial pipeline connections.
• Process Valve Connection: 3/4 NPT thread, standard connection method.
• Switch Position Indicator: Slot direction aligns with flow direction for easy operational status verification.
• Flange Hole Type: F04 standard, facilitates connection with other equipment.
• Internal Diameter: 16 mm, ensures smooth fluid passage.
• Nominal Diameter DN: 20, suitable for applications requiring medium flow rates.
• Valve Function: Operates in 3/2 mode with reversible flow direction, offering flexible fluid control options.
• Nominal Pressure PN: 63, suitable for stable operation in medium to high-pressure environments.
• Temperature Range: -20 °C to 200 °C, accommodating a wide range of operating temperatures.
• Material Specifications: Housing and ball made of precision-cast stainless steel (material number 1.4408), valve seat and sealing elements made of PTFE, ensuring corrosion resistance and long-term reliability.
• Product Weight: 1100 g, providing sturdy and stable construction.

Applications:

The FESTO VZBE-3/4-T-63-F-3T-F04-M-V15V15 ball valve is widely used in industries such as chemical, petroleum, pharmaceuticals, and food processing for fluid control systems. Its ability to withstand high pressures, high temperatures, and its excellent corrosion resistance make it an indispensable component in industrial fluid control.

In conclusion, the FESTO VZBE-3/4-T-63-F-3T-F04-M-V15V15 ball valve is renowned for its high performance, reliability, and versatility. Whether for precise fluid control, operational stability, or corrosion resistance, this product meets rigorous industrial demands.
