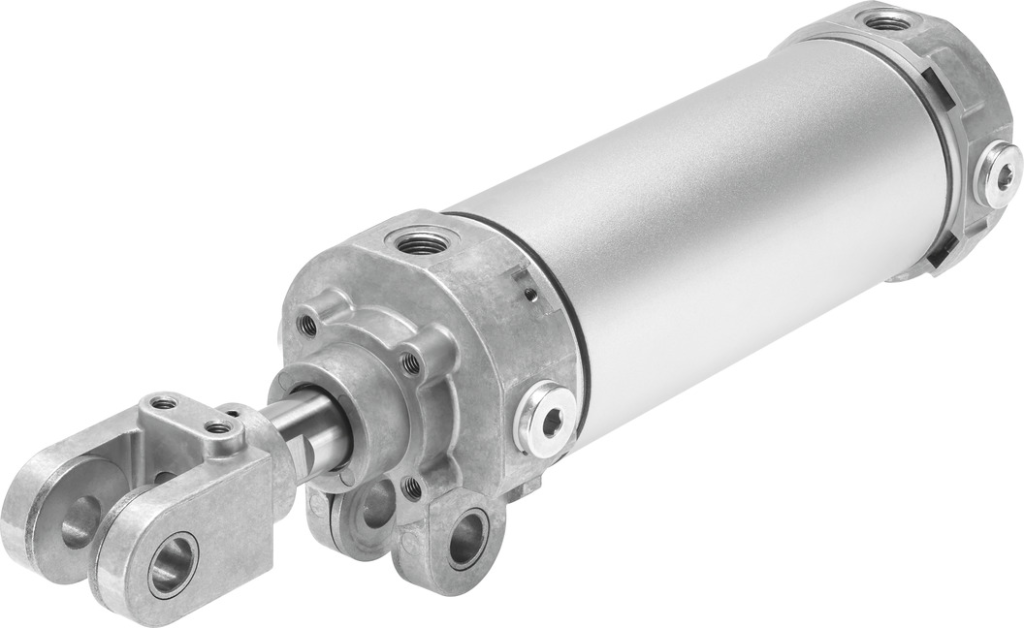

Introduction to FESTO DWA-50-125-Y Articulated Pneumatic Cylinder

The FESTO DWA-50-125-Y articulated pneumatic cylinder is a well-designed double-acting pneumatic device suitable for various industrial applications. Below are detailed features and specifications of this product:

Key Features and Specifications:

• Stroke: 125 mm
• Piston Diameter: 50 mm
• Piston Rod Thread: M16x1.5
• Wide Clevis Mounting: 16 mm
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Mounting Position: Optional
• Structural Features:
  • Cylinder diameter suitable for 50 mm piston rod and clevis design
  • Clevis mounting available on front end cover
  • Cylinder tube with speed adjustment and integrated flow control at both ends
  • No position sensing capability
• Operating Pressure: 1 bar to 10 bar
• Operating Mode: Double-acting
• Operating Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4]
• Operating and Pilot Medium Information: Can operate with lubricated medium, continuous lubrication required thereafter
• Corrosion Resistance Class CRC: 0 – No corrosion resistance
• PWIS (Paint Wetting Impairment Substance) Compliance: VDMA24364-B2-L compliant
• Ambient Temperature Range: -10 °C to 60 °C
• End Position Impact Energy: 0.7 J
• Cushioning Length: 20 mm

Additional Technical Data:

• Theoretical force values at 6 bar:
  • Return stroke: 990 N
  • Forward stroke: 1178 N
• Mass at 0 mm stroke: 664 g
• Additional mass per 10 mm stroke: 25 g
• Basic weight at 0 mm stroke: 1338 g
• Additional weight per 10 mm stroke: 37 g

Materials and Installation:

• Installation Method: Clevis mounting via bearing end cap
• With Accessories: Includes pneumatic interface Rc1/4
• Clevis Material: Steel casting, hardened steel
• Material Compliance: RoHS compliant, including die-cast aluminum, anodized finish, NBR seals, hardened steel piston rod, hard chrome-plated cylinder tube, and refined aluminum alloy cover material

The FESTO DWA-50-125-Y articulated pneumatic cylinder is renowned for its stable performance, durable materials, and versatile applications across industrial automation and mechanical fields. Whether for high-efficiency production lines or precise control applications, this product delivers reliable operation and long-term durability.
