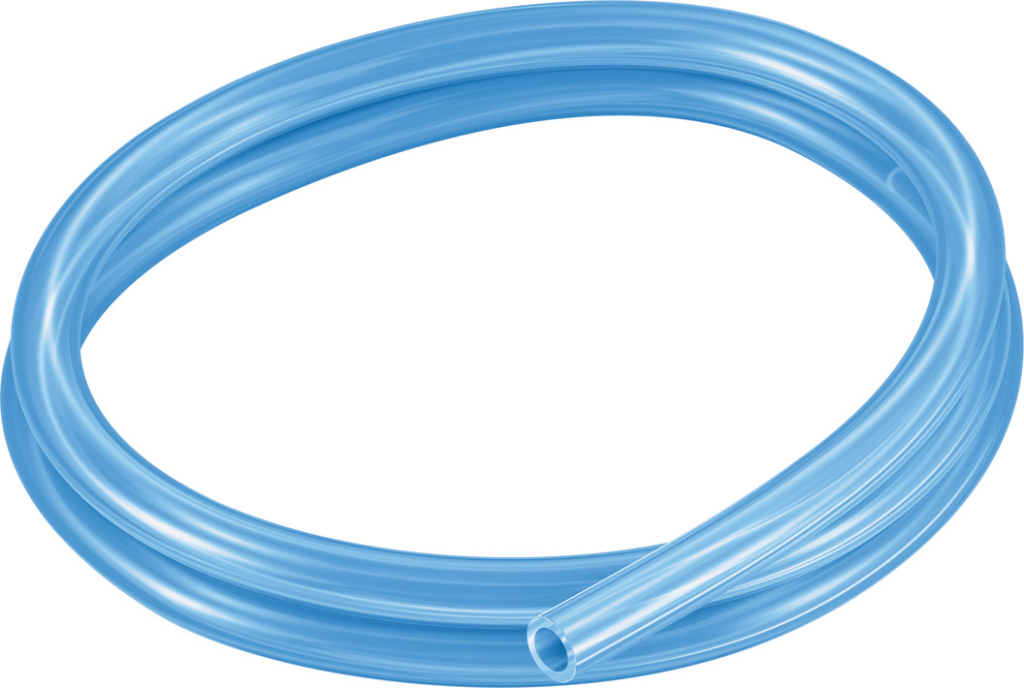

Introduction to FESTO PUN-H-6X1-TBL-500 Plastic Tubing

FESTO PUN-H-6X1-TBL-500 is a versatile plastic tubing designed for pneumatic applications in industrial automation. Below are the detailed specifications and features of this product:

Key Specifications:

• Outer Diameter: 6 mm
• Inner Diameter: 4 mm
• Flow-related bending radius: 26 mm
• Minimum bending radius: 10 mm
• Tube Characteristics: Suitable for drag chain applications
• Color: Transparent blue
• Shore Hardness: D 52 +/-3

Operational Parameters:

• Operating Pressure Range:
  • -0.095 MPa to 0.6 MPa
  • -0.95 bar to 6 bar
  • -13.775 psi to 87 psi
• Pressure Range Dependent on Temperature:
  • -0.095 MPa to 1 MPa
  • -0.95 bar to 10 bar
  • -13.775 psi to 145 psi
• Operating Pressure Notes:
  • Water: Maximum 0.3 MPa at 0 – 60°C, depending on temperature

Certifications and Compliance:

• Certification: German Technical Inspection Association (TÜV)
• Certificate Issuing Body: B 013277 0506 00
• Working Media: Compressed air, compliant with ISO 8573-1:2010 [7:-:-]
• Other Media: Liquid water (no ice)
• Fire Resistance Testing of Materials: UL94 HB
• PWIS Compliance: VDMA24364-B2-L
• Suitability: Approved for use in lithium-ion battery production; excludes metals containing more than 1% copper, zinc, or nickel (exceptions: nickel in steel, chemically plated nickel surfaces, printed circuit boards, cables, connectors, and coils)
• Cleanroom Compatibility: Components for static installation cannot be meaningfully evaluated according to ISO 14644-1

Environmental Conditions:

• Operating Temperature: -35°C to 60°C
• Weight: 0.0183 kg/m (depends on length)
• Pneumatic Interface: For quick-connect fittings with an outer diameter of 6 mm; for barbed fittings with an inner diameter of 4 mm, including tube nut

Material Specifications:

• RoHS Compliance: Yes
• Tubing Material: TPE-U (Polyurethane)

FESTO PUN-H-6X1-TBL-500 plastic tubing provides reliable performance in pneumatic applications, ensuring flexibility and durability in various industrial settings.
