High Performance and Durability: Detailed Introduction of FESTO PAN-8X1,25-GE Plastic Tubing

2024-07-17 By xyj2024 0

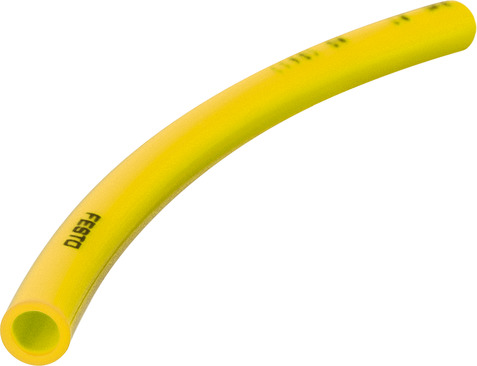

FESTO PAN-8X1,25-GE plastic tubing is renowned for its superior performance and wide industrial applications. This tubing is well-designed to serve various application needs, providing a reliable solution for gas transmission.

Technical Specifications:

  • Outer Diameter: 8 mm
  • Inner Diameter: 5.9 mm
  • Flow-related Bending Radius: 43 mm
  • Minimum Bending Radius: 22 mm
  • Suitable for drag chains
  • Operating Pressure Range (temperature-dependent): -0.095 MPa to 1.5 MPa (-0.95 bar to 15 bar; -13.775 psi to 217.5 psi)
  • Certification: German Technical Inspection Association (TÜV)
  • Working Media: Compressed air, compliant with ISO 8573-1:2010
  • Paint wetted surface defects (PWIS) compliance: VDMA24364-B2-L
  • Operating Temperature Range: -30°C to 80°C
  • Product Weight (depending on length): 0.024 kg/m
  • Pneumatic Interfaces:
    • For quick-connect fitting with an outer diameter of 8 mm
    • For barbed fitting with an inner diameter of 6 mm, including connecting nut
    • For barbed fitting with an inner diameter of 6 mm
  • Color: Yellow
  • Shore Hardness: D 55 +/-3
  • Material Compliance: RoHS compliant, tubing material is TPE-A

Applications:

FESTO PAN-8X1,25-GE plastic tubing is suitable for industrial automation systems, pneumatic equipment, and other applications requiring efficient gas transmission. Its excellent bending performance, pressure resistance, and temperature adaptability make it an indispensable part of modern industrial environments.

In conclusion, FESTO PAN-8X1,25-GE plastic tubing offers a stable and reliable solution for gas transmission with its outstanding design and multifunctional features. It excels in adaptability and reliability, meeting stringent performance and safety requirements in complex industrial environments.
