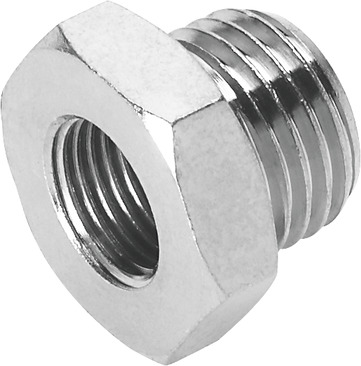

High Quality and Versatility: Detailed Introduction of FESTO NPFC-R-G12-G38-MF-P50 Reducing Connector

The FESTO NPFC-R-G12-G38-MF-P50 reducing connector is highly regarded for its exceptional performance and versatile industrial applications. This connector is meticulously designed to meet diverse requirements for gas transmission and connections.

Technical Specifications:

• Threaded Connector Material: Nickel-plated brass
• Package Size: 50
• Operating Pressure Range: -0.95 bar to 50 bar
• Working Media: Compressed air, compliant with ISO 8573-1:2010
• Corrosion Resistance Grade (CRC): 1 – Low corrosion resistance capability
• Paint Wetted Surface Defects (PWIS) Compliance: VDMA24364-B1/B2-L
• Operating Temperature Range: -20°C to 150°C
• Product Weight: 22.1 grams
• Port 1: G1/2
• Port 2: G3/8
• Material Compliance: RoHS compliant

Applications:

The FESTO NPFC-R-G12-G38-MF-P50 reducing connector is suitable for a wide range of industrial applications, particularly in systems requiring flexible connections and efficient gas transmission. Its reliable design and excellent performance make it indispensable in automated production lines and pneumatic systems.

In summary, the FESTO NPFC-R-G12-G38-MF-P50 reducing connector provides a stable and reliable solution for gas connections with its superior craftsmanship and versatility. Whether in high-pressure environments or applications demanding corrosion resistance, it demonstrates outstanding adaptability and reliability.
