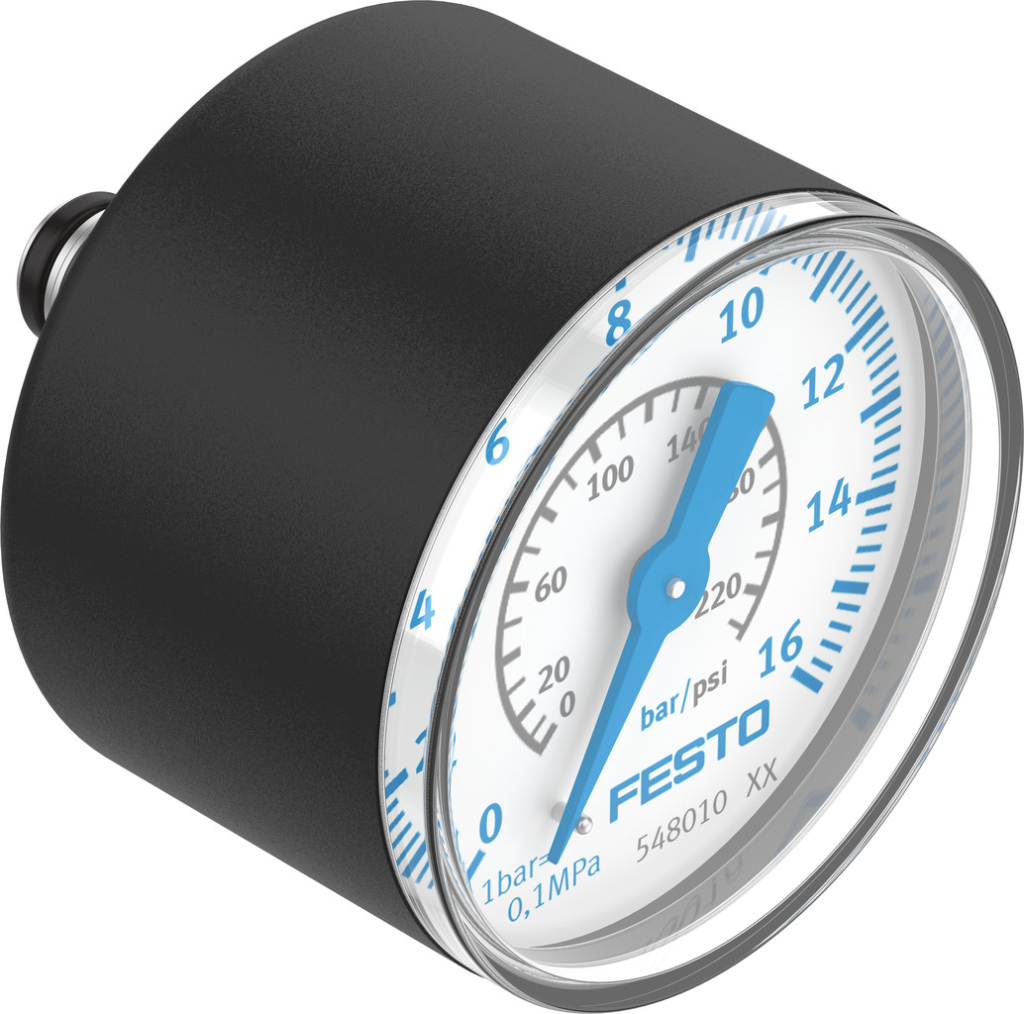

PAGN-40-16-P10 FESTO　Pressure Gauge：Precision and Reliable Monitoring Solution

Here is the detailed information about the product:

Key Features and Advantages:

• Measurement Range:
  • 0 bar … 16 bar
  • 0 psi … 232 psi
• Symbol: 00991463, compliant with EN 837-1 standard.
• Nominal Diameter of Pressure Gauge: 40 mm, suitable for various industrial applications.
• Explosion-proof: Must comply with certificate information! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
• Structural Characteristics: Bourdon tube pressure gauge, suitable for pipe installation, sturdy and durable structure.
• Operating Medium: The pressure of inert gas and neutral fluid can be measured, and the working pressure range is from 0 Mpa to 1.6 Mpa, covering a wide range of application needs.
• Alternating Load Coefficient: 0.66, ensuring stable measurement results under changing load conditions.
• Measurement Accuracy Level: 2.5, providing high-precision pressure measurement.
• Protection Level: IP43, compliant with NEMA 4 standards, protecting the equipment from external environmental influences.
• Medium and Ambient Temperature: It can work in a temperature range of -20 °C to 60 °C, adapting to various environmental conditions.
• PWIS Compliance (Paint Wetting Impairment Substance): Compliant with VDMA24364-B1/B2-L standards, ensuring the use of environments without paint wetting impairment substances.
• Material Description: RoHS compliant, with a central back interface position, a pneumatic interface with a plug-in connector diameter of 10 mm, contact medium and brass screw material, ABS shell material, PS screen material, black shell color, product weight is only 50 g, lightweight and easy to install.
• Operating and Pilot Medium Description: Suitable for acetylene-free and oxygen-free environments, ensuring safe and stable operating conditions.
• Scale: Dual scale display, externally marked with bar scale, and internal scale displaying psi units.

The FESTO PAGN-40-16-P10 pressure gauge provides a reliable pressure monitoring solution for industrial applications through its excellent design and precise measurement capabilities. Whether in manufacturing, automation control, or other industrial fields, the product meets stringent requirements, ensuring operational safety and stability.

PAGN-40-0.1M-R18-1.6-CPA
PAGN-40-0.4M-R18-1.6
PAGN-40-0.4M-R18-1.6-CPA
PAGN-40-0.6M-R18-1.6
PAGN-40-0.6M-R18-1.6-CPA
PAGN-40-1.6M-P10-CPA
PAGN-40-1.6M-R18-1.6
PAGN-40-1.6M-R18-1.6-CPA
PAGN-40-10-P10
PAGN-40-10-R18-1.6
PAGN-40-145P-P10
PAGN-40-16-P10
PAGN-40-1M-G18PA
PAGN-40-1M-P10-CPA
PAGN-40-1M-R18-1.6
PAGN-40-1M-R18-1.6-CPA
PAGN-40-232P-P10
PAGN-63-0.025M-G14-1.6
PAGN-63-16-G14-R1-1.6-0.5-V2
PAGN-P-40-1.6M-G14
PAGN-P-40-1.6M-G14-CPA
