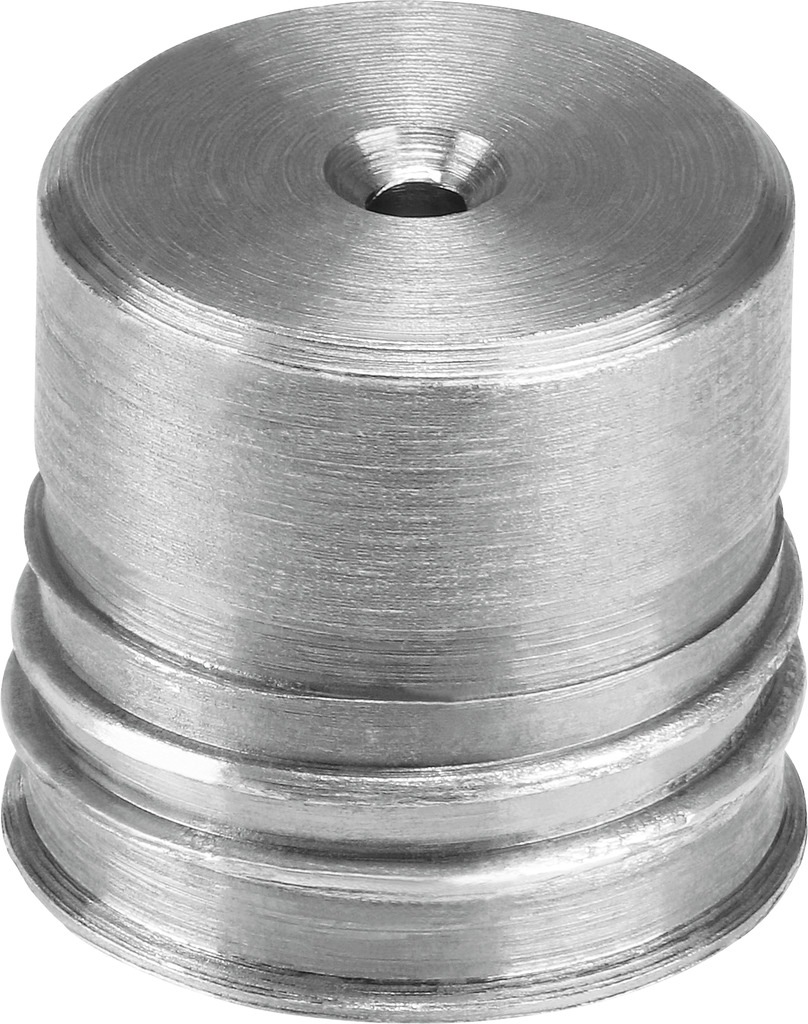

VFFG-T-F6-7 FESTO Fixed Orifice Valve: Efficient Flow Control

2024-07-18 By xyj2024 0

Here are the detailed specifications of the FESTO VFFG-T-F6-7 fixed orifice valve, designed specifically for compressed air systems:

Key Features and Characteristics:

  • Valve Functionality: Fixed orifice valve for controlling fluid flow rate and velocity.
  • Flow Control: Effectively regulates the flow of compressed air.
  • Installation: Designed with a tap for easy installation and maintenance.
  • Operating Pressure:
    • -0.09 MPa to 1 MPa
    • -0.9 bar to 10 bar
  • Operating Temperature: Safe operation within -5 °C to 60 °C ambient temperature range.
  • Certification: c UL us – OL certified, complying with safety standards.
  • Specifications: Suitable for pipes with a diameter of ø 5.8 mm.
  • Nominal Diameter: 0.7 mm, ensuring precise flow control.
  • Operating Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4] standard, ensuring air quality meets requirements.
  • Working and Pilot Medium: Can operate with lubricating media to ensure long-term stability of lubrication.
  • PWIS Compliance (Paint Wetting Impairment Substance): Complies with VDMA24364-B1/B2-L standards, suitable for applications requiring strict PWIS compliance.
  • Storage Temperature: -10 °C to 60 °C, suitable for various storage conditions.
  • Product Weight: Lightweight design, weighing only 1.2 g.
  • Material Compliance: RoHS compliant, ensuring material safety and environmental protection.

The FESTO VFFG-T-F6-7 fixed orifice valve provides a reliable energy-saving solution for compressed air systems with its stable performance and precise flow control. Whether used in industrial automation, mechanical manufacturing, or other applications, this product meets diverse needs while ensuring efficient and safe system operation.
