JMFH-5-1/8-EX FESTO Solenoid Valve: Efficient Control, Safe Explosion-proof

2024-07-22 By xyj2024 0

In the field of industrial automation, solenoid valves are crucial components for controlling the flow of fluids, and their performance and safety are of utmost importance. The JMFH-5-1/8-EX solenoid valve from FESTO Corporation offers efficient control capabilities and strict safety standards, meeting the demands of harsh industrial environments.

Product Overview

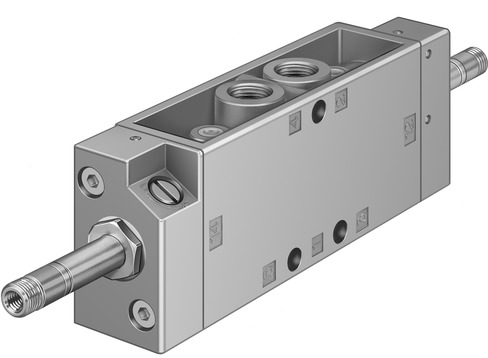

The FESTO JMFH-5-1/8-EX is a two-position five-way double-solenoid valve with an electric control drive. It features a compact width of 26 mm and a standard rated flow rate of up to 600 liters per minute. This solenoid valve is an ideal choice for industrial automation systems with its excellent performance and explosion-proof design that meets multiple international safety standards.

Specifications and Features

  • Valve Function: Two-position five-way double-solenoid, providing precise fluid control.
  • Drive Method: Electric control, offering rapid response and precise control.
  • Width: 26 mm, compact design for easy integration.
  • Standard Rated Flow: 600 l/min, standardized according to DIN 1343.
  • Working Air Port: G1/8, standard interface for easy connection.
  • Working Voltage: Supplied through a solenoid coil, to be ordered separately.
  • Working Pressure Range: 0.15 Mpa to 0.8 Mpa (1.5 bar to 8 bar).
  • Structural Features: Lifting seat design, easy for maintenance and operation.
  • CE Certification: Complies with EU safety standards, with a certificate of conformity.
  • Explosion-proof Certification: Complies with ATEX directive, suitable for various explosion-proof environments.
  • Gas Explosion-proof Flame-retardant Type: Ex h IIC T4 Gb, ensuring safe use in flammable environments.
  • Dust Explosion-proof Flame-retardant Type: Ex h IIIC T130°C Db, suitable for dusty environments.
  • Protection Level: IP65, dustproof and waterproof, adaptable to harsh environments.
  • Nominal Diameter: 5 mm, suitable for various pipe diameters.
  • Grid Size: 27 mm, ensuring good ventilation and heat dissipation.
  • Exhaust Function: With throttling option, optimizing system performance.
  • Sealing Principle: Soft sealing, providing good sealing performance.
  • Installation Position: Optional, adaptable to different installation requirements.
  • Manual Control Device: Locking type, ensuring operational safety.
  • Pilot Type: Pilot-driven, improving response speed.
  • Flow Direction: Non-reversible, ensuring unidirectional flow of fluid.
  • Symbol: 00995754, easy to identify and track.
  • Maximum Switching Frequency: 25 Hz, suitable for high-frequency operations.
  • Reverse Switching Time: 10 ms, fast switching.
  • Solenoid Coil Characteristics: Refer to the solenoid coil, to be ordered separately.

Installation and Interfaces

  • Electrical Interface: Connected through an F-type coil, to be ordered separately.
  • Installation Method: Can be installed on a pneumatic board or with through-holes.
  • Ventilation Interface: M5, ensuring good heat dissipation.
  • Pilot Exhaust Ports: 82, 84, M5, optimizing system exhaust.
  • Air Ports: Ports 1 to 5 are all G1/8, standard interfaces for easy connection.

Materials and Media

  • Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4].
  • Working and Pilot Medium Description: Can work with lubricating media, which must be used continuously thereafter.
  • Corrosion Resistance Class: CRC 1, with low corrosion resistance.
  • Paint Wetting and Defect Substance (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring product appearance quality.
  • Storage Temperature: -20°C to 60°C, adaptable to a wide range of storage conditions.
  • Medium Temperature: -5°C to 40°C, suitable for various working temperatures.
  • Ambient Temperature: -5°C to 40°C, adaptable to different environmental temperatures.
  • Product Weight: 260 g, lightweight and easy to install.
  • Seal Material: NBR, TPE-U(PU), providing good sealing performance.
  • Housing Material: Die-cast aluminum, lightweight and sturdy.

With its efficient control, safe explosion-proof design, and adherence to international standards, the FESTO JMFH-5-1/8-EX solenoid valve is an ideal choice for the field of industrial automation. Choosing FESTO means choosing a reliable partner to provide strong support for your automation projects.
