QST-V0-1/8-6 FESTO T-Nut Fitting: Efficient Connection, Excellent Performance

Festo, a globally recognized supplier of automation technology, continuously drives innovation and development in the field of industrial automation. Today, we are highlighting the Festo QST-V0-1/8-6 T-Nut Fitting, a product known for its efficient connection and outstanding performance, making it an indispensable component in automation systems.

Product Overview

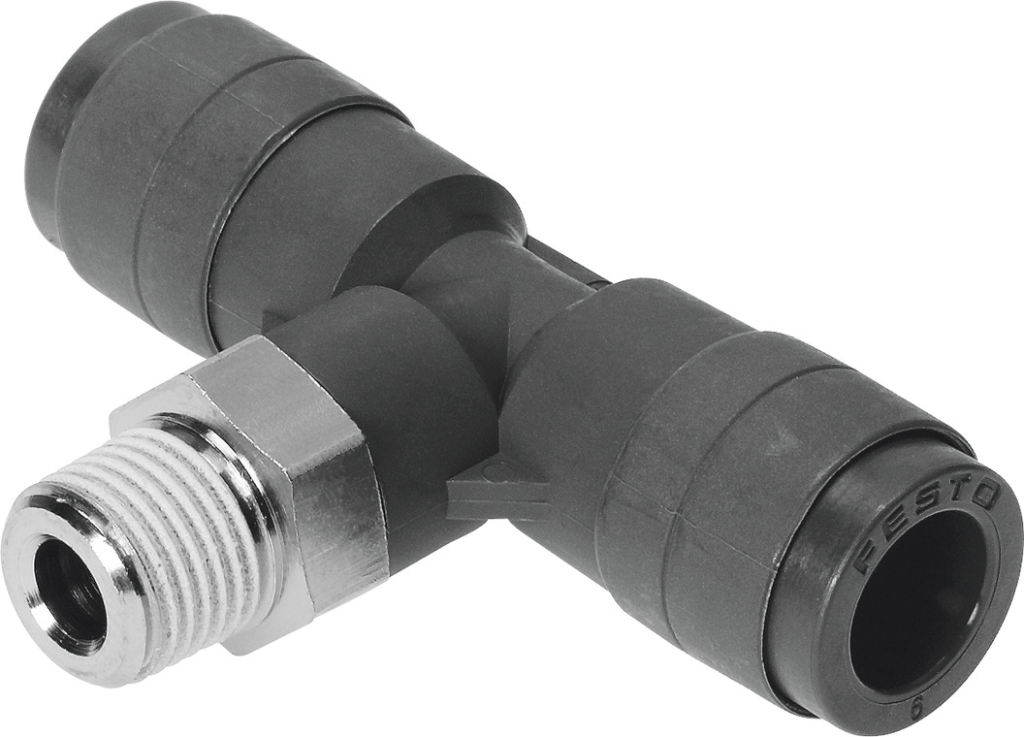

The Festo QST-V0-1/8-6 T-Nut Fitting is a compact and easy-to-operate pneumatic connection component. Its sleek design and efficient connection method play a crucial role in automated equipment and pneumatic control systems.

Specifications and Features

• Nominal Diameter: 4.2 mm, suitable for precise pneumatic applications.
• Material Fire Test: Both the housing and the unlocking ring meet the UL94 V-0 standard, ensuring safety performance under extreme conditions.
• Type of Seal on Screw-in Plug: Coated seal, providing excellent sealing performance.
• Design: T-shaped design for easy identification and operation.
• Package Specification: 10 per pack, convenient for storage and distribution.
• Structural Features: Utilizes a push-pull principle, simplifying the operation process.
• Complete Temperature Range at Working Pressure: -0.095 Mpa to 1 Mpa (-0.95 bar to 10 bar, -13.775 psi to 145 psi), adaptable to a wide range of working environments.
• Working Pressure Description: For water media, the maximum working pressure is 0.6 MPa at a maximum temperature of 50°C.
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:-:-], ensuring the purity and compatibility of the medium.
• Corrosion Resistance Class: CRC 2, with medium corrosion resistance, suitable for various chemical environments.
• Paint Wetting and Defect Substance (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring product appearance and durability.
• Ambient Temperature: 0 °C to 60 °C, adaptable to different environmental temperature changes.
• Nominal Torque: 7 Nm, ensuring the stability of the connection.
• Nominal Tightening Torque Tolerance: ± 20%, ensuring the consistency of the connection.
• Product Weight: 16 g, lightweight and easy to install.
• Installation Method: Hex external, size 10 mm, providing a stable installation method.
• Pneumatic Interface: Port 1 with external thread R1/8, Port 2 suitable for air tube outer diameter 6 mm, ensuring airtightness and connection strength.
• Release Ring Color: Black, easy to identify.
• Material of Screw-in Plug: Nickel-plated brass, offering good corrosion resistance and aesthetics.

Material Description

• RoHS Compliant: Meets environmental protection requirements, ensuring the safety and sustainability of the product.
• Housing Material: PBT (Polybutylene terephthalate), lightweight and sturdy, providing excellent mechanical properties.
• Release Ring Material: PBT, ensuring durability and consistency.
• Air Tube Seal Material: NBR (Nitrile butadiene rubber), providing good sealing effects.
• Air Tube Clamping Element Material: High-alloy stainless steel, offering high strength and corrosion resistance.
• Brass: Used for the screw-in plug, ensuring the reliability of the connection.

With its excellent performance, strict quality control, and user-friendly design, the Festo QST-V0-1/8-6 T-Nut Fitting is an ideal choice for the field of industrial automation. Choosing Festo means choosing a reliable partner to provide strong support for your automation projects.
