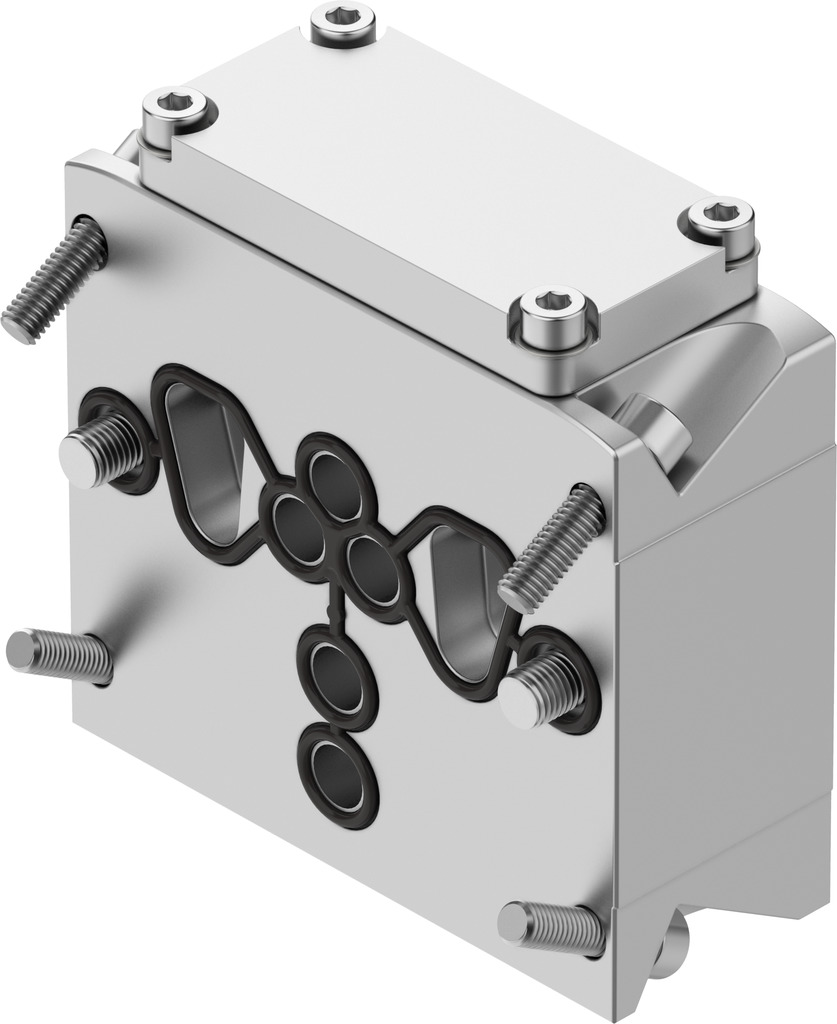

VOGI-F100FS-T32H-M-F90 FESTO: High-Performance Pneumatic Valve for Industrial Automation
2024-07-26The FESTO VOGI-F100FS-T32H-M-F90 pneumatic valve offers an efficient and reliable solution for precise pneumatic control in the field of industrial automation. This plate-style valve, featuring a pilot-operated piston valve design, is suitable for a wide range of industrial applications.

1. Product Overview The FESTO VOGI-F100FS-T32H-M-F90 is a high-performance pneumatic control valve designed to meet the demands of precision pneumatic control in industrial automation. Its plate-style valve structure and pilot-operated piston valve technology ensure rapid response and stable performance.
2. Technical Features
- Plate-Style Valve Design: Compact structure for easy integration into various automation systems.
- Pilot-Operated Piston Valve: Provides quick valve response time and precise flow control.
- Pneumatic Actuation: Driven by compressed air, suitable for a variety of industrial environments.
- Soft Sealing Principle: Utilizes EPDM and NBR materials to ensure good sealing performance.
- Flexible Installation Position: Installation methods can be chosen based on application needs.
- Two-Position Four-Way Valve Function: Single-solenoid control simplifies control logic.
- Double-Acting Operating Mode: Suitable for applications requiring bidirectional force control.
- Wide Working Pressure Range: 0.33 Mpa to 0.8 Mpa, accommodating different system pressure requirements.
- Spring Return: Ensures safe return of the valve in case of power or air failure.
- Pneumatic Interface: The base design is ventilated, improving heat dissipation efficiency.
3. Materials and Environmental Adaptability
- RoHS Compliant: In line with the Restriction of Hazardous Substances Directive, protecting the environment and user health.
- High Corrosion Resistance: Corrosion resistance rating CRC 3, suitable for use in harsh environments.
- Wide Medium Temperature Range: -20 °C to 80 °C, suitable for extreme temperature conditions.
4. Explosion-Proof Performance
- ATEX Explosion-Proof Certification: Suitable for zones 1, 2, 21, and 22, ensuring safe use in potentially explosive environments.
5. Application Fields The FESTO VOGI-F100FS-T32H-M-F90 pneumatic valve is suitable for various industrial fields, including automated machinery, pneumatic control systems, medical equipment, food processing, etc., especially in situations where high precision and safety are required.
With its high performance, reliability, and broad adaptability, the FESTO VOGI-F100FS-T32H-M-F90 has become an ideal choice for pneumatic control valves in the field of industrial automation. It not only enhances the control accuracy of the system but also ensures long-term stable operation through its durability and safety.
