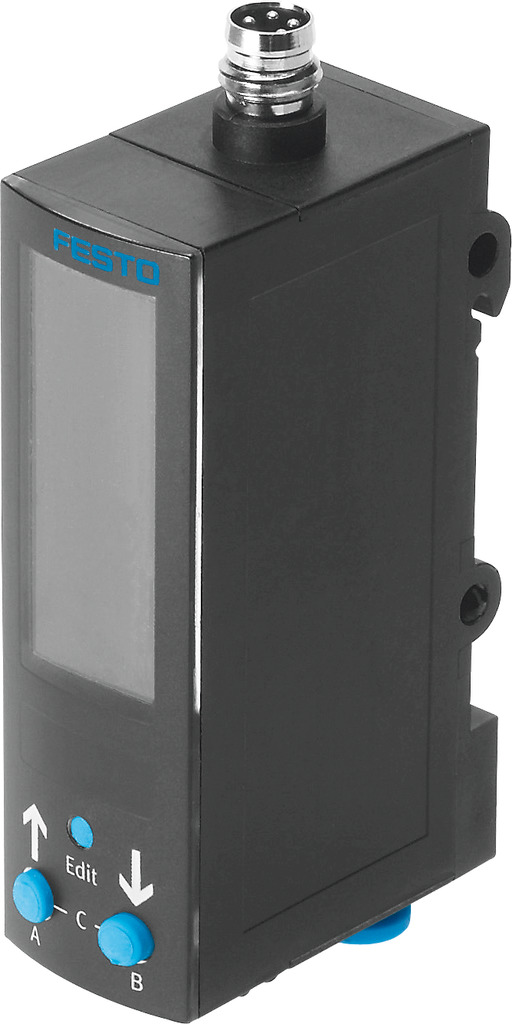

SDE3-D10D-B-HQ4-2P-M8 FESTO Pressure Sensor: Precision Measurement and Reliable Performance
2024-07-26In modern industry, precise pressure measurement is crucial for ensuring equipment operates correctly and improving production efficiency. The FESTO SDE3-D10D-B-HQ4-2P-M8 pressure sensor stands out as an advanced measurement solution, offering exceptional performance and a variety of features, making it an ideal choice for industrial applications. Here’s a detailed introduction to this pressure sensor:

Key Features
1. Accurate Pressure Measurement: The FESTO SDE3-D10D-B-HQ4-2P-M8 pressure sensor is equipped with a piezoelectric pressure sensor, offering a pressure measurement range from 0 to 1 MPa. Its accuracy is up to ±2% FS, meeting rigorous industrial requirements.
2. Multiple Unit Options: This sensor supports various pressure units, including megapascals (MPa), bars (bar), and pounds per square inch (psi), making it versatile for different global applications.
3. Wide Medium Compatibility: The sensor is suitable for compressed air and complies with ISO 8573-1:2010 [7:4:4] standards, ensuring reliability in various operating environments. It also supports the use of lubricating media, enhancing its applicability.
4. Reliable Switching Function: Featuring two PNP switching outputs, the sensor allows for programmable switching functions, enabling users to customize settings according to their needs. With a switching value repeatability of up to 0.3%, it ensures stable operation.
5. User-Friendly Interface: The sensor is equipped with a backlit LCD display that shows switching status and pressure values, providing a clear and readable interface. The yellow indicator on the LCD display allows for quick status checks.
6. Robust Design and High Protection Rating: The sensor is housed in reinforced polyamide PC, with an IP65 protection rating, effectively preventing dust and moisture ingress. Additionally, it has a corrosion resistance level of 2, suitable for various industrial environments.
7. Easy Installation and Connection: The SDE3-D10D-B-HQ4-2P-M8 sensor features an M8x1 plug connection, conforming to EN 61076-2-104 standards, for easy and secure installation. The QS-4 pneumatic connection ensures stable airflow.
Certifications and Compliance
The FESTO SDE3-D10D-B-HQ4-2P-M8 pressure sensor meets multiple international standards and certifications, including:
- RCM Certification (compliance with electrical safety requirements in Australia and New Zealand)
- cULus Certification (compliance with safety standards in the USA and Canada)
- CE Marking (compliance with EU electromagnetic compatibility directives and RoHS directives)
- Compliance with UK EMC and RoHS Directives (ensuring compliance in the UK market)
Configuration and Safety
The sensor features a teach-in function and PIN code anti-tampering feature, allowing users to conveniently set thresholds (range 0% to 100%) and hysteresis settings (range 0% to 90%), ensuring safety and accuracy in operation.
Applications
The FESTO SDE3-D10D-B-HQ4-2P-M8 pressure sensor is widely used in automation equipment, pneumatic systems, and production line monitoring. Its outstanding performance and high reliability make it an excellent choice for various industrial applications.
The FESTO SDE3-D10D-B-HQ4-2P-M8 pressure sensor, with its precise measurement capabilities, wide compatibility, and high protection rating, provides a reliable solution for industrial automation. Whether for pressure monitoring or system control, it enhances production efficiency and equipment safety, making it a trusted choice in the industry.
