NEBM-M23G15-EH-7.5-Q9N-R3LEG14 FESTO Motor Cable: A High-Performance Connection Solution
2024-08-02In the field of modern industrial automation, motor cables are a key component for connecting motors to control systems, and their performance and reliability are crucial. The NEBM-M23G15-EH-7.5-Q9N-R3LEG14 motor cable from FESTO, with its excellent electrical performance, durability, and safety in compliance with international standards, provides an ideal connection solution for industrial automation.

Product Overview

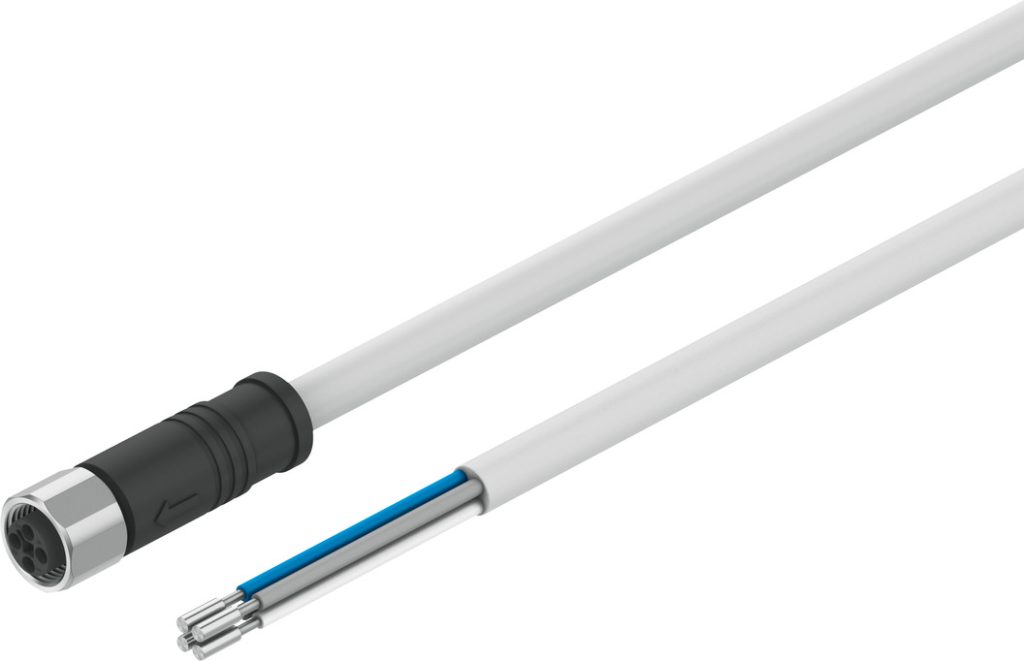

The FESTO NEBM-M23G15-EH-7.5-Q9N-R3LEG14 motor cable is a high-performance cable designed specifically for industrial environments, featuring:
- Compliance Standard: EN 61984, ensuring the cable’s quality and performance meet international standards.
- Cable Identification: No label bracket, facilitating quick identification and installation.
Electrical Interface Features
- Electrical Interface 1: As the field device end, it features a round hybrid socket design, M23x1 connection system, with 15 interface/wires, of which 12 are used, and a screw lock installation method.
- Electrical Interface 2: As the controller end, it provides a plug and cable, RJ45 and open-end connection system, with 14 interface/wires, of which 12 are used.
Technical Specifications
- Operating Voltage Range: DC 0 V to 850 V, AC 0 V to 630 V, accommodating various voltage requirements.
- Rated Current: 17.8 A at 40°C, meeting the demand for high current transmission.
- Surge Resistance: Up to 6 kV, providing good electrical protection.
- Shield: Equipped with a shield for enhanced mechanical protection of the cable.
Cable Characteristics
- Cable Length: 7.5 m, meeting the needs for long-distance transmission.
- Cable Feature: Suitable for drag chains, adapting to dynamic working environments.
- Bending Radius: Fixed cable ≥51.2 mm, mobile cable ≥96 mm, ensuring cable flexibility.
- Cable Diameter: 12.8 mm, tolerance ±0.3 mm, ensuring consistency and reliability.
- Cable Structure: 4 x 1.5 mm² + 1 x (2 x 0.75 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²), offering a variety of wire configurations.
Safety and Compliance
- Protection Level: IP67, providing comprehensive protection in the assembled state.
- Ambient Temperature: -40 °C to 90 °C, adapting to extreme temperature conditions.
- CE Certification: Complies with the EU Low Voltage Directive and RoHS Directive, ensuring product safety and environmental protection.
- Compliance with UK RoHS Directive: Meets the environmental requirements of the UK market.
Materials and Design
- Material Description: RoHS compliant, halogen-free, in line with environmental standards.
- Contamination Level: 3, suitable for general industrial environments.
- Corrosion Resistance Level: CRC 1, with basic corrosion resistance.
- Cable Sheath Material: TPE-U(PUR), offering good wear resistance and flexibility.
- Cable Sheath Color: Gray, easy to identify.
The FESTO NEBM-M23G15-EH-7.5-Q9N-R3LEG14 motor cable, with its high-performance electrical characteristics, excellent durability, and comprehensive safety compliance, has become an ideal choice for connecting motors to control systems in the field of industrial automation. Whether in static or dynamic industrial applications, it provides a stable and reliable connection.
