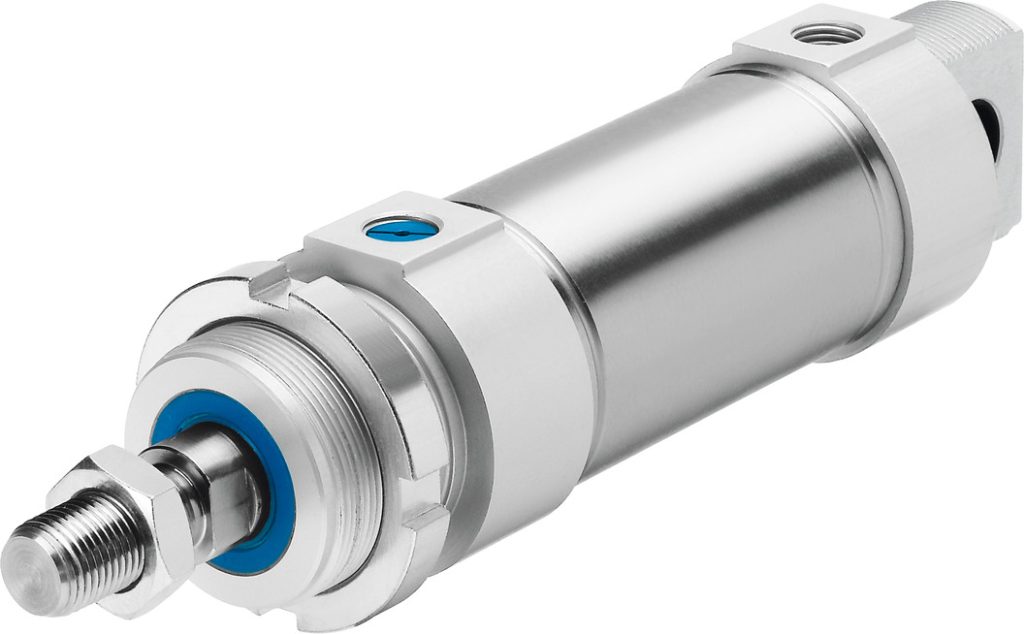

ESNU-40-10-P-A FESTO Round Cylinder: Precision Performance, Efficient Operation

In the field of industrial automation, the performance and reliability of cylinders as actuating components directly affect the work efficiency and stability of the entire system. The ESNU-40-10-P-A round cylinder from FESTO, with its precise design and efficient operational performance, provides an ideal solution for automation.

Product Overview

The ESNU-40-10-P-A round cylinder has the following core features:

• Stroke: 10mm, providing accurate linear motion control.
• Piston Diameter: 40mm, suitable for medium-load pneumatic applications.
• Piston Rod Thread: M12x1.25, standard thread for easy installation and connection.
• Buffering: Elastic buffer rings/pads on both ends to reduce impact and noise.

Technical Specifications

• Installation Position: Optional, offering flexible installation options.
• Cylinder Diameter: The diameter of the piston rod and cylinder ensures structural stability of the cylinder.
• Position Detection: Through proximity switches, precise position control is achieved.
• Working Pressure: 0.12 Mpa to 1 Mpa (1.2 bar to 10 bar), suitable for a wide range of working pressures.
• Operation Mode: Push mode, single-acting, meeting basic pneumatic requirements.
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4].
• Corrosion Resistance Level: CRC Level 2, with medium corrosion resistance.
• Ambient Temperature: -20°C to 80°C, suitable for variable environmental conditions.

Performance Parameters

• Spring Return Force After Piston Rod Retraction: 60N, ensuring stable cylinder retraction.
• Theoretical Force Value at 6 bar: 60N for the return stroke, 687.6N for the forward stroke, providing powerful working force.
• Moving Mass: 246g, lightweight design for improved response speed.

Material Description

• RoHS Compliance: In compliance with the EU RoHS directive, restricting the use of harmful substances.
• Cover Material: Refined aluminum alloy, lightweight and sturdy.
• Seal Material: NBR and TPE-U(PU), providing good sealing performance.
• Piston Rod Material: High-alloy steel, ensuring wear resistance and stability.
• Cylinder Material: High-alloy stainless steel, corrosion-resistant, extending service life.

Application Scenarios

The ESNU-40-10-P-A round cylinder is widely used in the following fields:

• Automation Equipment: Achieving precise linear motion control in automation equipment.
• Mechanical Tools: As a driving component of mechanical tools for accurate positioning and handling.
• Medical Equipment: Providing stable and precise power output in medical equipment.
• Laboratory and Test Equipment: Used in laboratories and test equipment that require precise control.

Product Advantages

• Precision Control: Precise stroke and piston diameter for efficient work performance.
• Flexible Installation: Optional installation positions to adapt to different installation requirements.
• Powerful Working Force: High theoretical force value at 6 bar pressure, meeting heavy-load working conditions.
• Durable Materials: High-alloy steel and stainless steel materials ensure product durability and corrosion resistance.

The FESTO ESNU-40-10-P-A round cylinder, with its precise control performance, efficient work mode, and durable material choices, provides a reliable industrial automation component for users. Choosing FESTO means choosing a more accurate and efficient pneumatic control solution.
