KVI-CP-3-GS-GD-5 FESTO Connection Cable: Your Reliable Link in Industrial Automation

In the field of industrial automation, a stable and efficient connection solution is key to ensuring seamless operation of equipment. The FESTO KVI-CP-3-GS-GD-5 connection cable offers an excellent performance and durability, providing a reliable choice for connecting field devices with controllers.

Product Overview

The KVI-CP-3-GS-GD-5 connection cable is a cable designed by FESTO for industrial automation, featuring various additional functions and high-standard electrical performance suitable for applications requiring frequent connections and disconnections.

Core Features

Dual Electrical Interfaces

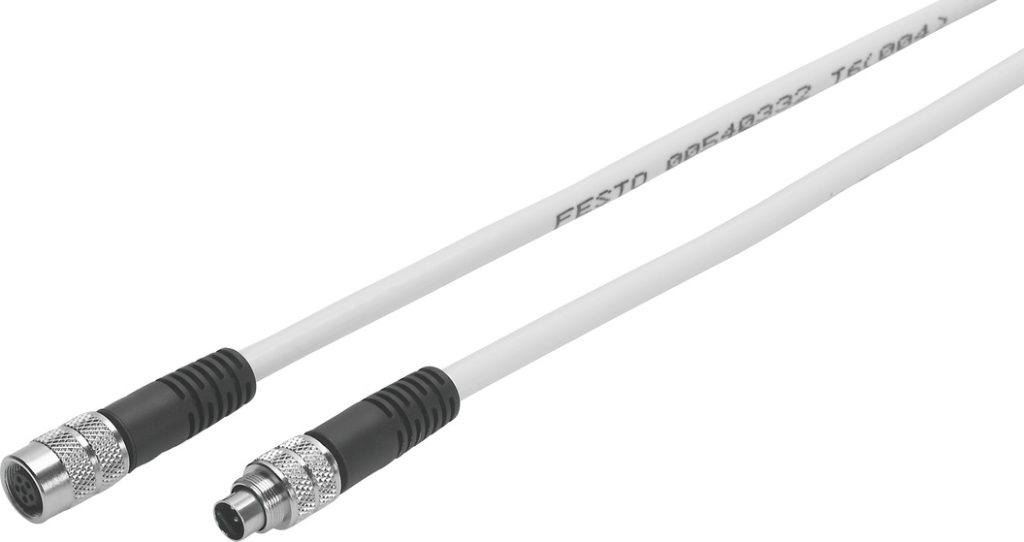

• One end is a socket for field devices, and the other is a plug for controllers, both with a circular design and an M9x0.5 connection system.

High Connection Frequency

• The cable is designed for up to 500 connection frequencies, making it suitable for environments where frequent plugging and unplugging occur.

Surge Resistance

• It has a surge resistance of 1.5 kV, protecting electrical equipment from voltage fluctuations.

Durable Cable Construction

• The cable is 5 meters long, with a structure of 2 x 0.25 mm² + 2 x 0.34 mm² + 0.49 mm², suitable for drag chains, and highly wear-resistant.

High Protection Rating

• The protection rating is IP65 and IP67 (when assembled), ensuring reliability in harsh environments.

Environmental Adaptability

• The operating temperature range is from -20°C to 80°C, and from -5°C to 80°C with a mobile cable.

Compliance with International Standards

• It meets CE certification requirements, complies with the EU RoHS directive, and the UK RoHS directive.

Technical Parameters

• Additional Features: Socket contact 3, 1 mm² wire; cable identification; with accessories
• Product Weight: 255.4 g
• Electrical Interface: Two interfaces, one for field devices and one for controllers
• Connection Type: Socket and plug
• Cable Exit: In-line
• Connection System: M9x0.5
• Interface/Wire Count: 5
• Installation Type: Screw lock
• Operating Voltage Range: DC 0 V … 30 V
• Rated Current: 1.6 A at 40°C
• Surge Resistance: 1.5 kV
• Shield: Yes
• Cable Length: 5 m
• Cable Feature: Suitable for drag chains
• Bending Radius: ≥75 mm for mobile cables
• Cable Diameter: 5.5 mm
• Protection Rating: IP65, IP67 (when assembled)
• Environmental Temperature: -20 °C … 80 °C (without mobile cable); -5 °C … 80 °C (with mobile cable)
• CE Certification: Compliant with EU RoHS directive
• PWIS Compliance: VDMA24364-B2-L
• Materials: RoHS compliant
• Contamination Degree: 1
• Corrosion Resistance Class CRC: 1 – Low corrosion resistance
• Cable Jacket Material: TPE-U(PUR)
• Cable Jacket Color: Light gray
• Housing Materials: PA, PBT, TPE-U(PUR)
• Housing Color: Black
• Screw Lock Material: Nickel-plated brass
• Electrical Contact Material: Gold-plated bronze, gold-plated brass
• Insulation Jacket Material: TPE-U(PUR)

The FESTO KVI-CP-3-GS-GD-5 connection cable is an ideal connection solution in the field of industrial automation with its high connection frequency, stable electrical performance, and excellent durability. Whether in extreme temperatures, humidity, or environments requiring frequent plugging and unplugging, this cable provides a stable and reliable connection. Choosing the FESTO KVI-CP-3-GS-GD-5 means selecting an industrial connection cable that meets international standards and offers superior performance.
