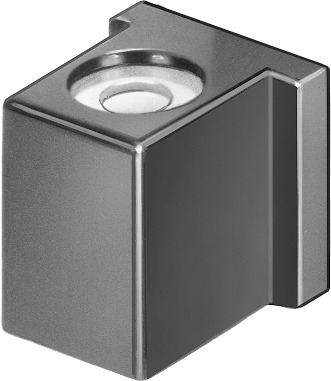

MSFW-230-50/60-OD FESTO Solenoid Coil: The High-Performance and Reliable Electrical Control Core for Automation

In the field of automated control systems, the solenoid coil, as an actuating component, directly affects the operational effectiveness of the entire system. The FESTO MSFW-230-50/60-OD solenoid coil offers strong electrical control support for industrial automation with its high performance and reliability.

Product Overview

The MSFW-230-50/60-OD solenoid coil is a high-performance coil designed by FESTO for various industrial automation control applications. It meets the stringent requirements of modern industry with its rapid response and sustained stable operation.

Core Features

Fast Grab Time

• The shortest grab time is only 10 milliseconds, ensuring the system’s quick response.

High Continuous Duty Rating

• The coil is designed to meet a 100% continuous duty rating, suitable for applications requiring long-term operation.

Stable Power Factor

• The power factor (cos phi) is 0.7, ensuring the energy efficiency of the electrical system.

Coil Characteristic Parameters

• Under 230V AC voltage, at a frequency of 50/60 Hz, the starting power is 9.0 Va, and the holding power is 7.0 VA.

Wide Voltage Adaptability

• Allows for voltage and frequency fluctuations of +/- 10% and +/- 5%, respectively, ensuring stable operation under different power grid conditions.

International Certification Standards

• Complies with CE certification requirements, adhering to the EU Low Voltage Directive and UK electrical equipment regulations.

High Protection Rating

• The protection rating reaches IP65, suitable for various industrial environments.

Technical Parameters

• Installation Position: Optional
• Switch Position Indicator: No
• Shortest Grab Time: 10 ms
• Continuous Duty Rating: 100%
• Power Factor (cos phi): 0.7
• Coil Characteristic Parameters: 230 V AC, 50/60 Hz, starting power 9.0 Va, holding power 7.0 VA
• Permissible Frequency Fluctuation: +/- 5%
• Allowable Voltage Fluctuation: +/- 10%
• CE Certification: Compliant with EU Low Voltage Directive
• PWIS Compliance: VDMA24364-C1-L
• Protection Rating: IP65
• Ambient Temperature: -5 °C … 40 °C
• Maximum Tightening Torque for Socket: 0.4 Nm
• Product Weight: 55 g
• Electrical Interface: 3-pin, connection type compliant with Festo standard, for MSSD-F
• Installation Method: Via knurled nut
• Materials: RoHS compliant
• Solenoid Coil Materials: Thermosetting plastic, copper, steel
• Coil Material: Copper

The FESTO MSFW-230-50/60-OD solenoid coil is an ideal electrical control component in the field of industrial automation with its fast response, high continuous duty rating, stable power factor, and high protection rating. Whether in mechanical control, pneumatic systems, or automated equipment, this solenoid coil provides stable and reliable operation. Choosing the FESTO MSFW-230-50/60-OD means selecting a high-efficiency, safe, and internationally standardized solenoid coil.
