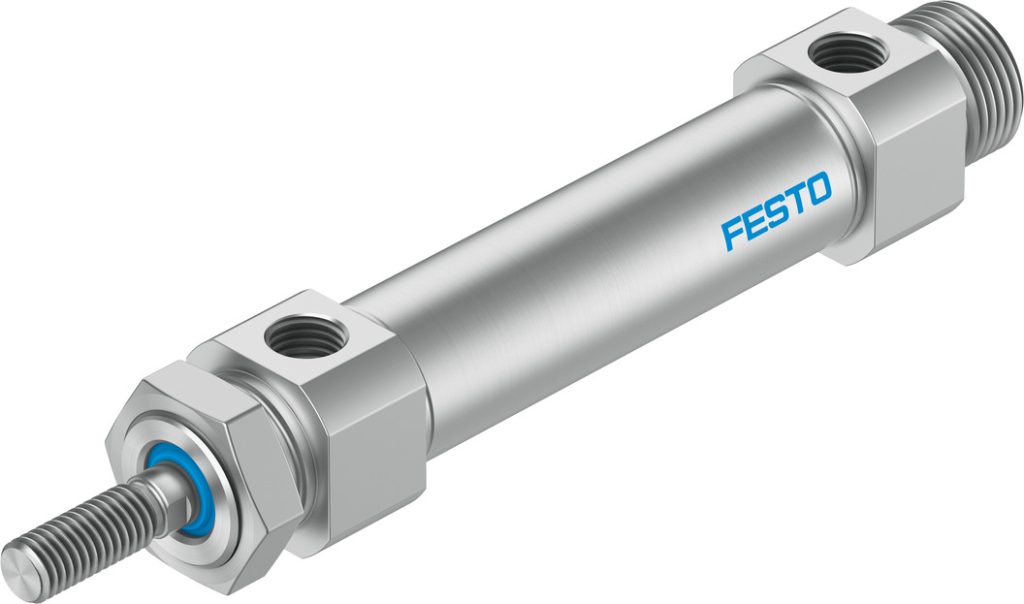

DSNU-16-60-P-A FESTO Standard Cylinder: Precision and Durability in Automation

In the field of automation control systems, the performance and reliability of cylinders as actuating components are crucial for the stability and efficiency of the entire system. FESTO’s DSNU-16-60-P-A standard cylinder, with its precise design and durable construction, provides an ideal solution for automation. This article will detail the features and advantages of this standard cylinder.

Precise Stroke Control

The DSNU-16-60-P-A cylinder has a stroke of 60 mm and a piston diameter of 16 mm, allowing for accurate positioning control to meet the needs of high-precision automation applications.

Robust Piston Rod Thread

The piston rod thread of the cylinder is M6, a standard thread design that facilitates easy connection with other mechanical components, enhancing system compatibility.

Buffering at Both Ends

The cylinder features elastic buffer rings/pads at both ends, which effectively reduce shock and noise during motion, extending the service life of the cylinder.

Flexible Mounting Positions

The DSNU-16-60-P-A cylinder offers a choice of mounting positions and supports various mounting methods, providing flexibility to accommodate different mechanical designs and application requirements.

Compliance with International Standards

This cylinder complies with CETOP RP 52 P and ISO 6432 standards, ensuring the international versatility and interchangeability of the product.

Position Detection Capability

Position detection is achieved through proximity switches, enhancing the precision and reliability of the control in automated systems.

Wide Pressure Range

The cylinder’s working pressure range is from 0.1 Mpa to 1 Mpa (1 bar to 10 bar), suitable for various pressure requirements.

Double-Acting Operating Mode

The DSNU-16-60-P-A cylinder operates in a double-acting mode, enabling bidirectional motion control and increasing application flexibility.

Corrosion Resistance and Clean Room Rating

The cylinder has a corrosion resistance rating of CRC 2 and complies with the VDMA24364-B1/B2-L standard for paint wet defect substance (PWIS). It also meets the ISO 14644-1 Class 6 clean room standard, making it suitable for clean room environments.

Strong Environmental Adaptability

The cylinder operates in an ambient temperature range of -20°C to 80°C, demonstrating excellent adaptability to various environments.

FESTO’s DSNU-16-60-P-A standard cylinder, with its precise stroke control, robust piston rod thread, buffering at both ends, flexible mounting positions, compliance with international standards, position detection capability, wide pressure range, double-acting operating mode, corrosion resistance, and strong environmental adaptability, offers an efficient and reliable pneumatic control component for automation control systems. Whether in precision machinery requiring exact control or in automated production lines pursuing high stability, the DSNU-16-60-P-A standard cylinder is an ideal choice.
