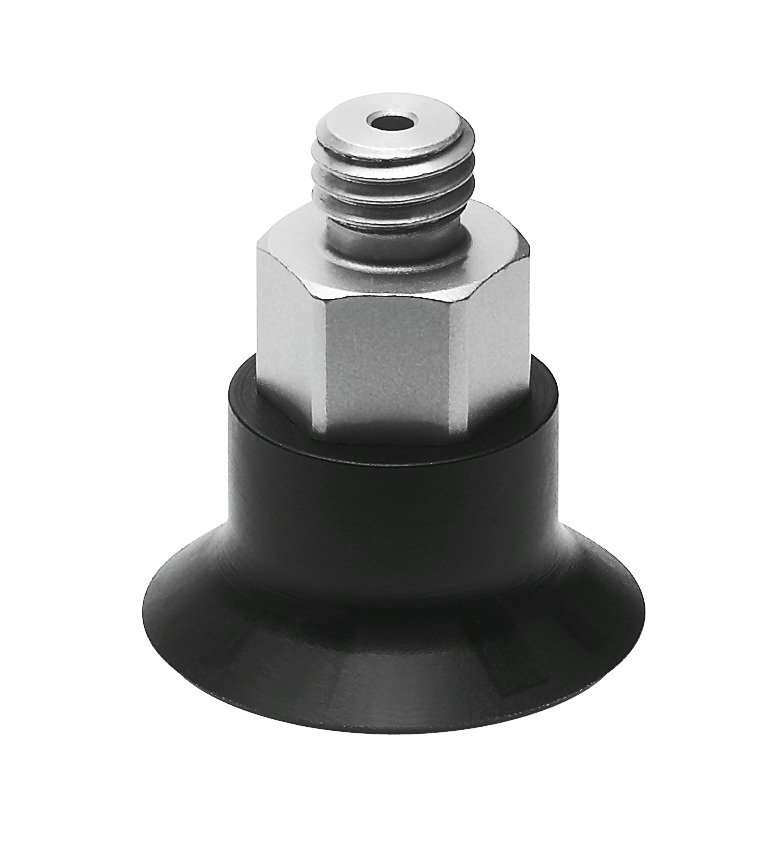

ESS-30-GT-M10 FESTO Complete Vacuum Cup: Efficient Suction, Precise Control

In the fields of automated handling and assembly operations, vacuum cups are key components for achieving fast and accurate gripping. FESTO’s ESS-30-GT-M10 complete vacuum cup offers reliable automation solutions with its efficient suction capabilities and precise control features. This article will detail the characteristics and advantages of this vacuum cup.

Efficient Suction Capability

The ESS-30-GT-M10 vacuum cup has a diameter of 30 mm and a volume of 2.4 cm³, operating at a working pressure range of -0.95 bar to 0 bar, ensuring strong suction force and stable gripping performance.

Precise Height Compensation

Equipped with a 3.5 mm height compensator, the cup can adapt to workpieces of varying heights, enhancing the system’s flexibility and adaptability.

Broad Application Range

With a minimum workpiece radius of 26 mm and a nominal bore diameter of 2.5 mm, the ESS-30-GT-M10 vacuum cup is suitable for a variety of workpiece sizes and shapes.

Optional Mounting Positions

The mounting position of the vacuum cup can be selected according to user needs, providing a high degree of flexibility to accommodate various robotic arms and automation equipment.

Corrosion Resistance and Environmental Adaptability

The corrosion resistance rating is CRC 2, compliant with the VDMA24364-A1-L standard for paint wet defect substance (PWIS), and capable of operating in an ambient temperature range of -10°C to 80°C, demonstrating good corrosion resistance and environmental adaptability.

Strong Retaining Force and Lateral Force

The vacuum cup has a retaining force of 36 N at the rated working pressure and a lateral force of 13 N at the nominal working pressure, ensuring stability and reliability under various working conditions.

Lightweight Design

Weighing only 13 g, the lightweight design reduces the load on the robotic arm, improving the overall system’s efficiency.

Convenient Mounting Method

Easy and quick to install through the M10 vacuum port, it is simple to integrate into existing automation systems.

FESTO’s ESS-30-GT-M10 complete vacuum cup, with its efficient suction capability, precise height compensation, broad application range, optional mounting positions, corrosion resistance, environmental adaptability, strong retaining force and lateral force, lightweight design, and convenient mounting method, provides an efficient and reliable vacuum cup option for automated handling and assembly operations. Whether it’s a production line pursuing high efficiency or an automation application requiring precise control, the ESS-30-GT-M10 vacuum cup is an ideal choice.
