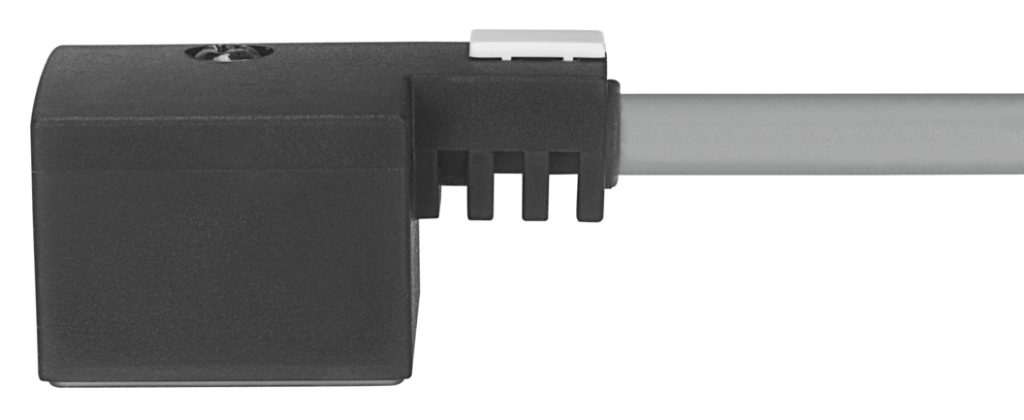

KMC-1-24-10-LED FESTO Connection Cable: Efficient Connection with Clear Indication

In the field of automation control systems, the stable operation and status monitoring of solenoid valves are crucial. FESTO’s KMC-1-24-10-LED connection cable, with its LED status indication and reliable electrical connection, provides an ideal solution for users. This article will detail the features and advantages of this connection cable.

LED Status Indication

The KMC-1-24-10-LED connection cable is equipped with an LED indicator that clearly displays the on/off status of the solenoid valve, facilitating real-time monitoring by operators and enhancing the reliability and safety of the system.

Convenient Installation Method

This cable can be installed on the solenoid valve via an M3 central screw, offering a simple and fast installation process that saves time and costs.

Optional Installation Position

The installation position of the cable can be chosen according to actual needs, providing high flexibility to adapt to various installation environments and requirements.

Electrical Interface Features

The type of the cable is A, with a nominal operating voltage of DC 24V, and it has reverse polarity protection, suitable for all electrical connections, ensuring the safety of the electrical connection.

Protective Conductive Interface

The cable offers a protective conductive interface, enhancing the durability and safety of the cable.

Cable Specifications

The cable length is 10 meters, the cable diameter is 6 millimeters, and the cable structure is 3 x 0.75 mm², meeting the electrical connection needs for long distances and high loads.

High Protection Rating

The protection rating of the cable is IP67, in accordance with the IEC 60529 standard, enabling stable operation in harsh industrial environments.

Strong Environmental Adaptability

The cable can operate in an ambient temperature range of -20°C to 80°C, adapting to various climate conditions.

Compliance with International Standards

The cable complies with CE certification and RoHS directives, ensuring the product’s environmental and safety standards.

FESTO’s KMC-1-24-10-LED connection cable, with its LED status indication, convenient installation method, optional installation position, electrical interface features, protective conductive interface, cable specifications, high protection rating, and strong environmental adaptability, provides an efficient and reliable connection solution for solenoid valves. Whether it’s a production line pursuing high efficiency or an automation application requiring precise control, the KMC-1-24-10-LED connection cable is an ideal choice.
