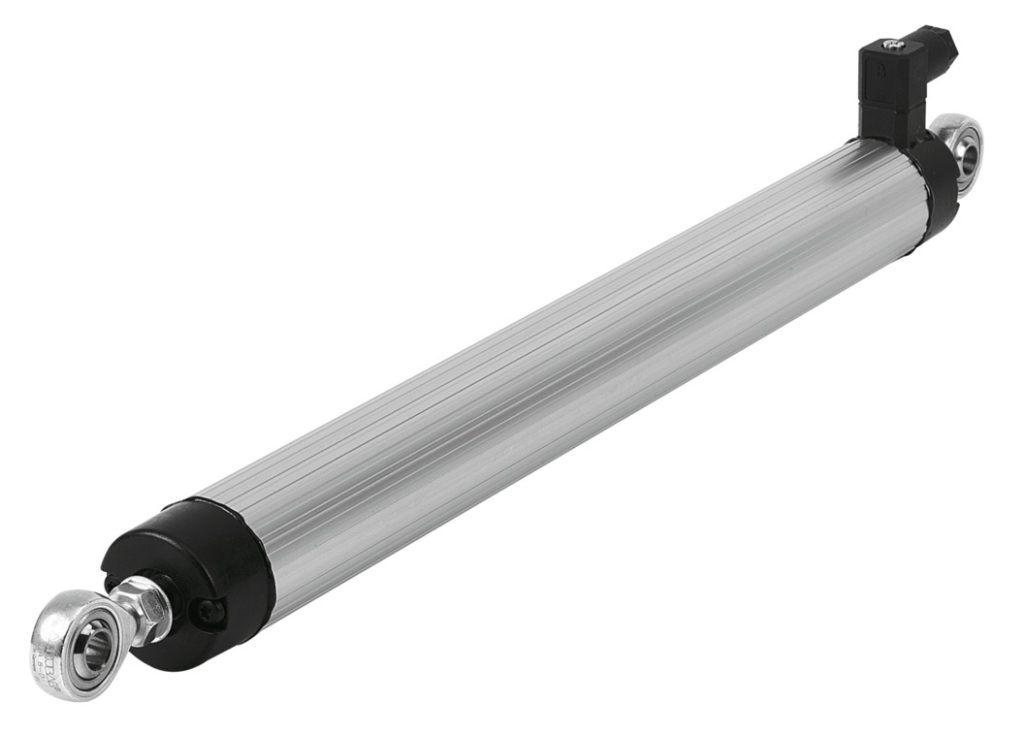

MLO-POT-150-LWG FESTO Displacement Encoder: High Precision Measurement for Reliable Performance

In the field of automation control systems, displacement encoders play a crucial role in achieving accurate position monitoring and control. FESTO’s MLO-POT-150-LWG displacement encoder, with its analog measurement system and exceptional performance parameters, offers an ideal solution for displacement monitoring. This article will detail the features and advantages of this displacement encoder.

High-Precision Analog Measurement

The MLO-POT-150-LWG displacement encoder utilizes an analog measurement system, providing precise displacement data to meet the demands of high-precision control.

Wide Temperature Range for Environmental Adaptability

The encoder is capable of operating in an environmental temperature range of -30°C to 100°C, making it suitable for various climate conditions and industrial environments.

Low Power Consumption Design

With a recommended scraper current of less than 1 µA and a maximum scraper current of 10,000 µA for short periods, the encoder achieves low power consumption while maintaining high precision.

High Dynamic Performance

The maximum speed of movement is up to 5 m/s, and the maximum acceleration is 200 m/s², ensuring the encoder’s performance in high-speed and high-dynamic applications.

High Resolution and Linearity

The displacement resolution is as high as 0.01 mm, with a non-linearity of 0.08%, ensuring the accuracy and reliability of the measurement results.

Stable Output Signal

The encoder provides a stable analog output signal with a connection resistance of 5 kOhm and a tolerance of 20%, ensuring the stability of signal transmission.

Electrical Interface

The encoder is equipped with a 16 mm square 4-pin plug, facilitating electrical connection and system integration.

Structural Features

The circular profile design, with a connecting rod, allows for a driver angle offset of ±12.5°. These structural features offer flexible installation and application options.

High-Quality Materials

The housing is made of refined aluminum alloy with anodized treatment, the cover is made of reinforced PBT, the connecting rod is made of high-alloy stainless steel, the bearing seal material is NBR, and the rod seal material is PTFE. The use of these high-quality materials ensures the durability and reliability of the encoder.

High Protection Rating

With a protection rating of IP65, in accordance with the IEC 60529 standard, and vibration and impact resistance in accordance with DIN/IEC 68, the encoder is stable in harsh industrial environments.

FESTO’s MLO-POT-150-LWG displacement encoder, with its high-precision analog measurement, wide temperature range for environmental adaptability, low power consumption design, high dynamic performance, high resolution and linearity, stable output signal, convenient electrical interface, structural features, high-quality materials, and high protection rating, provides an efficient and reliable displacement monitoring component for automation control systems. Whether it’s high-precision position control or high-stability industrial applications, the MLO-POT-150-LWG displacement encoder is an ideal choice.
