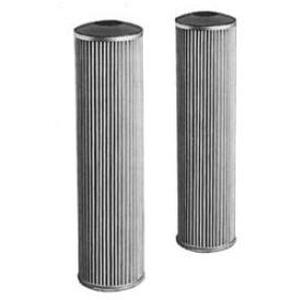

Product Introduction of EP020-005N Filter Element

Product Overview

The EP020-005N is an industrial-grade high-precision hydraulic oil filter element developed with multi-layer composite filter media and optimized structural design, specifically for protecting precision hydraulic components. Complying with ISO 16889 standards, this product effectively intercepts tiny particulate contaminants in hydraulic systems to ensure stable system operation.

Product Features

• Precision Filtration Technology
  • Composite filter media of glass fiber + resin-impregnated material.
  • Absolute filtration accuracy: 5μm (β₅≥200).
  • Gradient density structure design, increasing dirt-holding capacity by 30%.
• High-Strength Structure
  • 304 stainless steel inner skeleton with compressive strength ≥2MPa.
  • High-temperature resistant end caps (-40℃ to +120℃).
  • Double-layer sealing ring design (NBR + FKM).
• Excellent Performance
  • Initial pressure difference ≤0.015MPa.
  • Maximum working pressure difference: 0.35MPa.
  • Flow range: 20–50L/min.
• Safety Design
  • Optional built-in bypass valve (opening pressure 0.3MPa).
  • Anti-static treatment.
  • Passed ISO 2941 burst pressure test.

Technical Parameters

Application Fields

• Precision Hydraulic Equipment
  • Hydraulic systems for CNC machines
  • Hydraulic circuits of injection molding machines
• Construction Machinery
  • Pilot oil circuits of excavators
  • Hydraulic control systems of cranes
• Industrial Automation
  • Hydraulic stations for die-casting equipment
  • Hydraulic systems of automated production lines
• Special Applications
  • Hydraulic pitch control systems for wind power
  • Marine hydraulic equipment

Product Advantages

• Technical Advantages
  • German imported filter media.
  • Multi-layer gradient filtration structure.
  • Certified by ISO 16889 testing.
• Reliability Advantages
  • Average service life: 5,000 hours.
  • Excellent sealing performance.
  • Strong resistance to pressure surges.
• Economic Advantages
  • Extends hydraulic oil replacement cycles.
  • Reduces equipment failure rates.
  • Lowers maintenance costs.
• Service Advantages
  • Professional technical support provided.
  • Complete after-sales service system.
  • 12-month quality guarantee.

Summary

The EP020-005N filter element provides a reliable contamination control solution for modern hydraulic systems through its innovative filtration materials and precise structural design. It not only meets the filtration requirements of high-precision hydraulic systems but also ensures long-term stable filtration performance via optimized flow channel design and enhanced structural strength. Against the backdrop of industrial equipment evolving toward intelligence and high precision, the EP020-005N filter element has become a key component for ensuring long-term stable operation of hydraulic systems, thanks to its superior filtration efficiency and reliable quality. Whether for conventional industrial applications or special equipment under harsh conditions, this product delivers excellent filtration protection, effectively extending the service life of hydraulic components and reducing system maintenance costs. As hydraulic technology continues to advance, the EP020-005N filter element will continue to provide trustworthy contamination protection for various hydraulic equipment.
