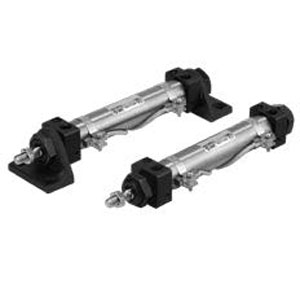

Product Introduction of CHKDB25-25 Hydraulic Cylinder

Product Overview

The CHKDB25-25 is a high-performance double-acting hydraulic cylinder manufactured with premium alloy steel and precision machining processes, specifically designed to provide reliable linear power output for industrial automation equipment. Featuring a compact structure, strong load-bearing capacity, and smooth operation, this product is widely applied in linear drive systems of various mechanical equipment.

Product Features

• Precision Structural Design
  • Compact specification with a bore diameter of 25mm and a stroke of 25mm.
  • High-strength alloy steel cylinder barrel with precision-ground inner surface.
  • Hard chrome-plated piston rod, surface roughness Ra≤0.2μm.
• High-Performance Parameters
  • Rated working pressure: 16MPa.
  • Maximum thrust: 7.85kN (at 16MPa).
  • Operation speed range: 0.1–1.0m/s.
• Reliable Sealing System
  • Imported polyurethane seals.
  • Multi-channel sealing structure design.
  • Leakage rate ≤0.1ml/min.
• Diversified Configurations
  • Optional magnetic ring type (for position detection).
  • Adjustable buffers at both ends.
  • Multiple mounting methods available (flange/ear/foot).

Technical Parameters

Application Fields

• Industrial Automation Equipment
  • Automated assembly lines
  • Manipulator end effectors
• Machine Tool Equipment
  • CNC machine clamping devices
  • Machining center tool change mechanisms
• Construction Machinery
  • Actuators for small construction machinery
  • Hydraulic systems of construction equipment
• Special Equipment
  • Drive units for testing equipment
  • Loading systems for testing machines

Product Advantages

• Performance Advantages
  • High thrust and smooth operation.
  • High positioning accuracy (repeat positioning accuracy ±0.1mm).
  • Fast response speed.
• Quality Advantages
  • Imported materials for key components.
  • Strict quality control system.
  • Passed ISO 6020/2 standard testing.
• Maintenance Advantages
  • Replaceable seal design.
  • Long maintenance cycle.
  • Low failure rate.
• Economic Advantages
  • Long service life (≥5000km).
  • Low energy consumption.
  • Low comprehensive usage cost.

Summary

The CHKDB25-25 hydraulic cylinder demonstrates outstanding product value in the field of small hydraulic actuators through its compact structural design and reliable performance. By optimizing internal flow channel design and adopting high-quality sealing components, the product achieves a perfect combination of high thrust and long life while maintaining a small volume. Its precision manufacturing processes and strict quality control ensure stable performance under various working conditions. As industrial automation equipment evolves toward higher precision and reliability, the CHKDB25-25 hydraulic cylinder will play a more important role in high-end application fields such as precision assembly and automated processing. This product not only meets the current power requirements of industrial equipment but also provides a reliable actuator solution for future intelligent upgrades, making it an indispensable key component in modern industrial automation systems.
