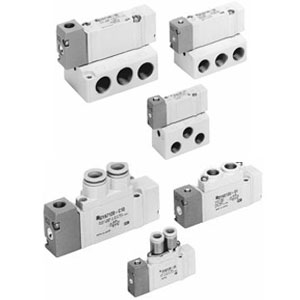

SYA5120-01: The Core Hub of Pure Pneumatic Control – A Safe and Reliable Flow Commander

In harsh industrial environments such as explosive, high-temperature, and high-humidity conditions, or in applications requiring intrinsically safe control, pure pneumatic control systems demonstrate irreplaceable advantages. The SYA5120-01 Pneumatic Control Valve (Pilot-Operated Pneumatic Directional Valve), as the core control component of such systems, achieves precise flow path switching solely through pneumatic signals without the need for electricity. It is an ideal choice for building safe, reliable, and durable pneumatic circuits.

Core Product Advantages

1. Intrinsically Safe, Non-Electric Operation
   • Fully driven by air source pressure (pilot air), with no electrical components, fundamentally eliminating the risk of electric sparks. Perfectly suited for applications with strict explosion-proof requirements (e.g., petroleum, chemical, painting, mining) and environments where solenoid valves cannot or should not be used.
2. High Reliability, Adaptable to Harsh Conditions
   • Robust structure, insensitive to temperature, humidity, and vibration in the working environment, with strong anti-interference capability. It remains reliably operable via pneumatic signals even during power failures or line damage, ensuring extremely high system stability.
3. Large Flow Design, Strong Driving Capability
   • Pilot-operated structure design uses small-flow pneumatic signals to control large-flow main air paths. With a high flow capacity (Cv value), it can quickly drive large air consumption actuators such as large cylinders and air motors.
4. Multiple Pilot Control Methods
   • Compatible with single or dual pilot pneumatic control methods (e.g., 3-way, 5-way functions), flexibly adapting to manual valves, mechanical valves, or other pneumatic control valves as pilot signal sources. Facilitates the construction of complex pure pneumatic logic control systems.
5. Easy Maintenance, Long Service Life
   • Mature internal structure design with relatively lenient air source quality requirements. The spool and sleeve are precision-ground for excellent wear resistance, low failure rate, simple maintenance, and long service life.

Working Principle
The valve utilizes externally introduced pilot air pressure (typically 0.15–0.8 MPa) to drive the spool, overcoming spring force or pressure from the other end, thereby altering the main air path to achieve the directional switching function of compressed air.

Typical Application Scenarios
• Explosion-Proof Areas: Pneumatic control for equipment in chemical plants, coal mines, oil and gas platforms, and all other applications requiring explosion-proof capabilities.
• Harsh Environments: Areas unsuitable for electronic components, such as near high-temperature furnaces, washing zones, high-humidity conditions, and strong vibration environments.
• Safety Circuits: Serves as the final control element in safety systems, driven by pneumatic signals from safety valves or two-hand triggering devices.
• Large Equipment: Controls large cylinders or acts as the main control valve, with pilot signals provided by small solenoid valves or manual valves.

Conclusion
The SYA5120-01 Pneumatic Control Valve is a solid cornerstone in the field of pure pneumatic control. With its intrinsic safety, environmental adaptability, and high reliability, it plays an irreplaceable role in special working conditions. It simplifies and ensures reliability in automated control for complex and demanding environments.

Choosing the SYA5120-01 means selecting ultimate safety and robust durability for your system. It is a loyal guardian that operates without power, silently ensuring the stable and continuous operation of your critical processes under any challenge.
