VM132-M5-33A: The Precise Mechanical “Fingertip” for Reliable Position Feedback and Sequential Control

In automated processes, it is often necessary to convert mechanical motion into reliable pneumatic signals to trigger the next precise action. The VM132-M5-33A Mechanical Valve (Limit Valve) transforms physical position signals into airflow switching commands through direct mechanical contact, making it an ideal choice for building simple, stable, and low-cost pneumatic logic control systems.

Core Product Advantages

1. Direct Mechanical Actuation, Reliable and Durable
   • Activated directly by mechanical components such as cams, stops, or workpieces, eliminating the need for electrical power. Its simple structure ensures strong anti-interference capability, enabling stable operation in environments with intense electromagnetic interference or where electricity is unsuitable.
2. Multiple Actuator Options for Diverse Applications

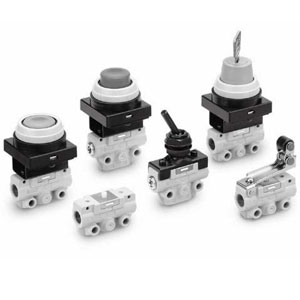

   • Offers a variety of actuator types, including roller lever (denoted by -33A), direct push, and pivoted lever, to accommodate mechanical collisions from different directions and installation angles, meeting diverse triggering needs.
3. High Repeatability and Fast Response
   • Delivers high triggering position accuracy and excellent repeatability, ensuring signals are emitted precisely at preset positions. Its optimized internal structure enables rapid response, guaranteeing timely control.
4. Flexible Installation and Easy Adjustment
   • Equipped with standard mounting holes or brackets for easy fixation to equipment bases or cylinders. The triggering position and sensing stroke can be flexibly adjusted and set according to actual requirements.
5. Intrinsically Safe and Easy to Maintain
   • Pure pneumatic mechanical structure with no electrical components, ensuring intrinsic safety for explosion-proof environments. Its robust construction ensures a long service life and simple daily maintenance.

Working Principle
When a moving component (such as a stop on a cylinder piston rod or a moving workpiece) contacts the valve’s actuator (e.g., roller lever) and causes it to displace, the valve spool is driven to move, altering the airflow path’s on/off state and outputting a control air signal.

Typical Application Scenarios
• Cylinder Stroke Position Detection: Installed at the end of a cylinder’s stroke to detect the extended or retracted position of the piston rod and send signals to control subsequent actions.
• Workpiece Position Verification and Sorting: Used on conveyor belts or fixtures to detect whether a workpiece is in place or present.
• Safety Interlock Control: Employed for position detection of safety doors or protective covers to ensure equipment operates under safe conditions.
• Sequential Control: Serves as a triggering signal source for step-by-step control in automated equipment.

Conclusion
The VM132-M5-33A Mechanical Valve is a classic and critical bridge enabling seamless integration between mechanical and pneumatic systems. With its purely mechanical structure, reliable triggering performance, and broad applicability, it holds an irreplaceable position in low-cost automation, safety control, and harsh working conditions.

Choosing the VM132-M5-33A means selecting a sharp and loyal “mechanical messenger” for your system, converting physical motion into reliable control commands to ensure every action is executed with precision.
